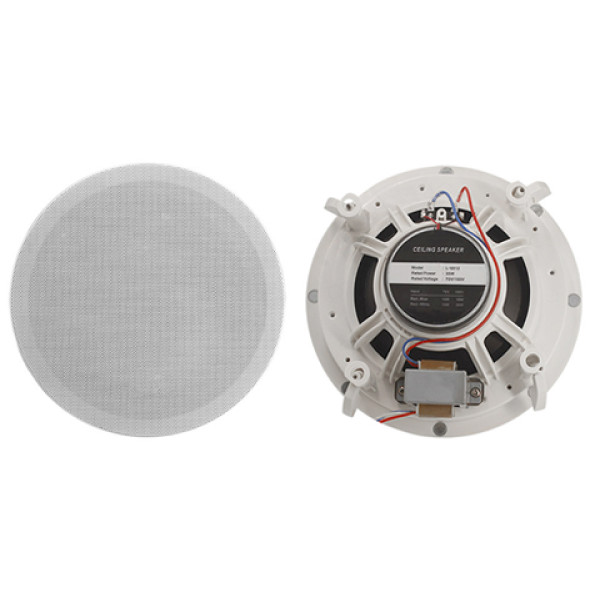

L-5012 8" 35W ABS Slim Edge Coaxial Ceiling Speaker

Product ID: L-5012
Short Description:

Rated power: 35W
Line input: 70V/100V
Speaker driver: 8" woofer + ¾" tweeter

35W ABS coaxial ceiling speaker with 8" PP paper cone woofer speaker driver and ¾" tweeter, 70V/100V line input.

Ultra-narrow edge design, with RAL white coating, suitable for all indoor usage.

 Model  L-5012
 Rated power  35W
 Power taps (70V)  10/15W
 Power taps (100V)  15/35W
 Line input  70V/100V
 Sensitivity (1M,1W)  86dB±2dB
 Max SPL (1M)  101dB±2dB
 Frequency response  55-20KHz
 Woofer speaker driver  8" PP paper cone, rubber edge
 Tweeter driver  ¾" coaxial
 Product dimension (mm)  Φ255x100
 Hole for mounting (mm)  Φ235
 Frame material  ABS
 Grille material  Steel
 Color  White
 Product net weight (Kg)  2.0
 Gross weight (Kg)  -
 Packing dimension (cm)  -
