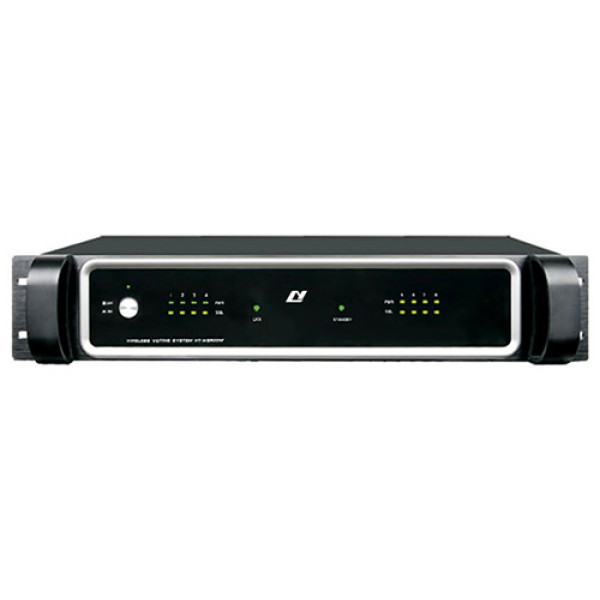

H-W8800M Digital Wireless Voting Processor
The wireless voting processor is the core port of the voting system and is responsible for communication between the wireless devices and the control computer. It transmits the ballot command to the wireless devices; and feedback the results to the application software, which is converted into intuitive chart information by the application software.
◆ Built-in digital voting CPU
◆ Support up to 2000 voting units at most in one system
◆ In combination with the corresponding software modules, multiform voting can be implemented:
1) Voting function ( yes, no, abstain)
2) Electing function ( single-ballot and multiple-ballot)
3) Scoring (100, 75, 50, 25, 0)
◆ Count results automatically within 1 second after ballot
◆ The wireless voting processor can communicate with the equipment by RJ45 interface
Item | Parameter |
Power Supply | AC110V~240V 50Hz~60Hz |
Consumption Rating | 2W |
Control interface | RJ45 |
Communication speed with PC | 115200 bps |
Communication speed with signal station | 1M bps |
Max quantity of supported signal station | 8pcs |
Color | Black |
Net Weight (Kg) | 5.8 |
Dimension (LxWxH) (mm) | 483x355x88 |
Installation | 19 Inch frame |
