Product ID: H-W02
Short Description:

Indicator light on active microphone
Volume knob and on/off switch of monitor speaker
With REC output

Manual Book Download:
- H-W02.pdf

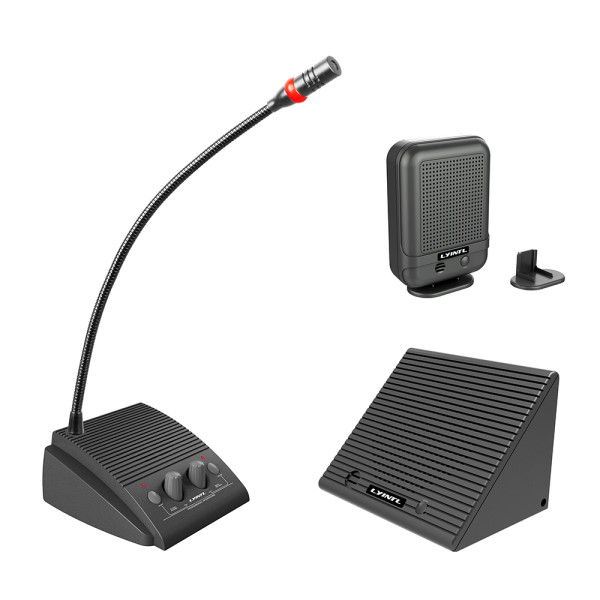

Window intercom system, ease communication through counter windows, glass partitions or windows in box offices, banks, offices, control points, private accesses, car parks, etc.

Clear sound for voice.

Easy-to-use.



1. Electret condenser cardioid microphone;
   Indicator light on active microphone: when microphone is active, indicator light switches on

2. Monitor speaker of desktop intercom, to monitoring the sound from windows microphone

3. Volume knob and on/off switch of monitor speaker for desktop intercom (with indicator)

4. Volume knob and on/off switch of monitor speaker for windows intercom (with indicator)

5. SPEAKER: connection for window intercom, 3.5mm stereo jack

6. LINE IN: 3.5mm jack for reproduction through window intercom

7. REC OUT: 1xREC, 3.5mm stereo jack

8. Power on/off switch

9. Power input: DC12V

10. Monitor speaker of window intercom, to monitor the sound from desktop microphone

11. Microphone of window intercom

12. Call: Press this key to give call indicator to desktop intercom

13. Bracket for window intercom (Option 1)

TECHNICAL DATA SHEET

 CHARACTERISTICS



 Window intercom microphone

 Quality sound with anti-feedback processor.

 Duplex two-way sound with communication control.

 Independent volume knob for window and interior intercom

 Easy to use.

 CONTROLS

 On/off

 Independent window and interior volume

 FUNCTIONS

 Automatic communication control, internal intercom priority

 Anti-feedback processor

 LED power indicators on desktop intercom

 Power 2 x 5 W

 Optimum distance for speaking into window intercom microphone 20 cm

 The window intercom can be hung or stuck on the glass with the provided.

 Double-sided adhesive pads.

 INPUTS

1 microphone-loudspeaker connection for window intercom, 3.5 mm stereo jack

1 line, 3.5 mm jack for reproduction through window intercom

 OUTPUT

 1 REC, 3.5mm stereo jack

 POWER SUPPLY

 12V DC, 1 A with adapter included

 CABLE

 2.4m cable for window intercom

 DIMENSIONS

 Desktop intercom: 141 x 62 x 142mm depth

 Gooseneck microphone: 420mm height

 Window intercom:

 Option 1: 84 x 124 x 37mm depth (with bracket)

 Option 2: 145 x 100 x100mm depth

 WEIGHT

 1.2 kg

 ACCESSORIES

 Foam windshield

 Adhesive pad for window intercom installation
