WEP-9115T/WEP-9125T/WEP-9150T/WEP-9110T/WEP-9250T/WEP-9300T 15W/25W/50W/100W/150W/300W Wireless Power Transmitter
Product ID:
WEP-9115T/WEP-9125T/WEP-9150T/WEP-9110T/WEP-9250T/WEP-9300T
Short Description:
Hi-fi stereo power transmitter
Long distance transmission
Mono/stereo mode switchable
WEP-9115T is a wireless PA transmitter developed specially for radio broadcasting system transmitting FM frequency.
This equipment is able to output high definition audio signal, with RDS sub-carrier decoding and high-reliability signal encryption technology, it is possible to prevent the illegal insertion of broadcasting; the built-in gas discharge tube is used to protect the equipment from lightning in order to guarantee the safety in the broadcasting system.
This equipment can be used indoor or outdoor like college, factory, park, square, and playground. Together with the wireless transmitter, multi-function control host, and high-definition horn or column loudspeakers, you can build a complete broadcasting system.

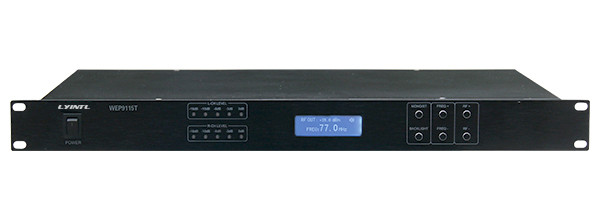

◆ 1U Aluminum-alloy panel, LCD display
◆ Control up to 1000 zones through control host (PA-7005)
◆ High-definition stereo output, long distance transmission
◆ Friendly display interface, easy understanding
◆ Frequency range: 76MHz - 108MHz, transmission frequency adjustable within effective range, avoid same frequency point interference
◆ Transmission power adjustable, applied for different transmission distance
◆ Dual channel input signal level LED indicator
◆ Mono/stereo mode switchable
Transmission distance:
WEP9125T 2～3KM
WEP9150T 3～5KM
WEP9110T 5～8KM
WEP9250T 8～10KM
WEP9300T 10～12KM
| Model | WEP9115T | WEP9125T | WEP9150T | WEP9110T | WEP9250T | WEP9300T |
| MAX transmission power | 15W | 25W | 50W | 100W | 150W | 300W |
| Transmission distance | 1~2Km | 2~3Km | 3~5Km | 5~8Km | 8~10Km | 10~12Km |
| Working temperature | -10°C ~ +50°C | |||||
| Transmission frequency range | 76-108MHz | |||||
| Frequuency interval | 0.1MHz | |||||
| Radio frequency output impedance | 50Ω | |||||
| Mode frequency modulation | FM | |||||
| MAX frequency deviation | 75KHz (stereo mode) | |||||
| Pre-emphasis time | 50μS | |||||
| Control mode | RS232, 9600bps | |||||
| Addressing ability | 1000 zone | |||||
| Channel resolution | ≥42dB | |||||
| S/N ratio | 63dB (stereo mode) | |||||
| Frequency response | 20Hz - 15KHz | |||||
| Audio input impedance | 10KΩ | |||||
| Audio distortion | ≤0.1% | |||||
| Control host | PA7005 host (control range of 64 zone) | |||||
| Power supply | AC220V / 50Hz | |||||
