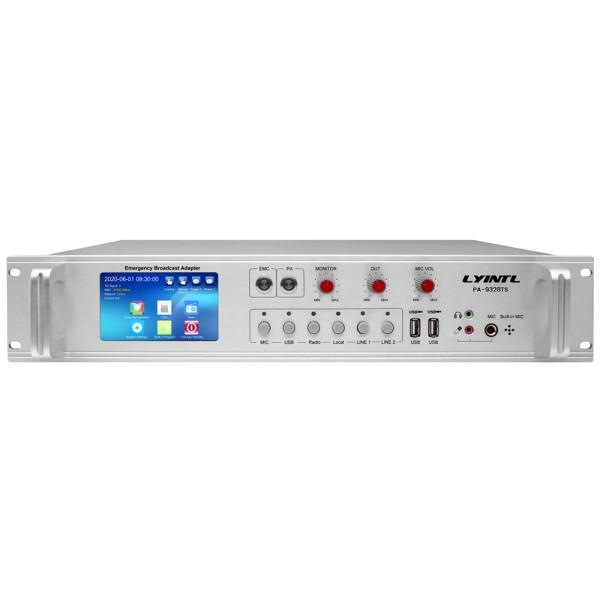

PA-9823TS Wireless PA System Multi-functional Host

Product ID: PA-9832TS

Short Description:

Integrated with timer, MP3 player, FM tuner, data coding modulator, alarm, microphone and 4G mobile phone paging

Item			Parameter
Input	Ground input		DTMB, F(75Ω)
	Line input		DVB-C, F(75Ω)
	FM input		F (75Ω)
	ASI input		BNC (optional)
	IP input		100/1000Mbps，UDP协议
	GPRS receive module		Support SMS and telephone remote emergency paging
	2 group AUX input		RCA
	Balanced audio input		XLR (optional)
	AES/EBU input		XLR (optional)
	RDS input		BNC (optional)
	USB input		USB connector
			Audio file format: MP3
	2 Mic input		6.35mm and 3.5mm
Output	ASI output		BNC (optional)
	IP output		UDP prototal, 100/1000Mbps
	AUX output		RCA
	Monitoring speaker		3W
	Monitiroing output		3.5mm
	RDS/FM output		F (75Ω)
	2 timing power supply		220V 5A
Parameter	Receiving mode		Support DVB-C/DTMB/FM/IP
	Receiving frequency range		DVB-C: 30MHz~999MHz DTMB: 30MHz~999MHz FM: 87MHz~108MHz
	Frequency output range		87-108MHZ
	RF signal input level		DVB-C: -80dBm~0dBm DTMB: -85dBm~0dBm FM: ≤-50dBm
	Audio coding		Decode	MPEG-1 Layer 2
			Frequency	48KHz
			采样精度	24-bit
			码率	64Kbps
System	LCD screen display, press key control
	Chinese/English
	Temperature	0~45℃(working)；-20~80℃(storage)
	Power supply	AC 100~265V±10%，50/60Hz
	Standby consumption	<35W
Output power	Amplifier output	120W (100V)
