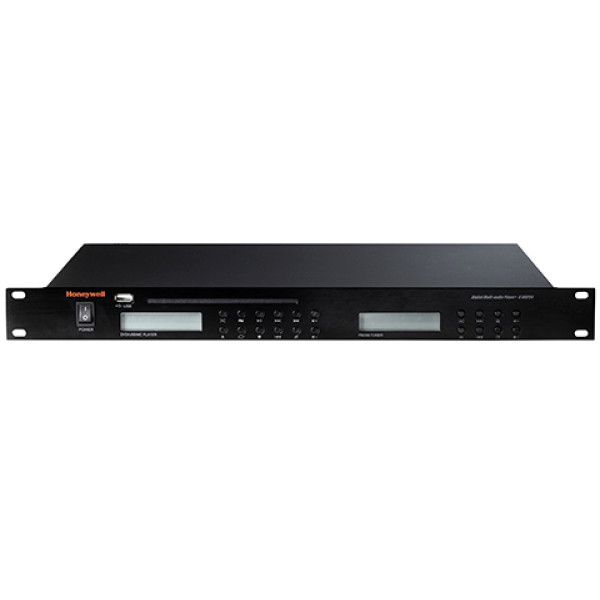

Product ID: X-MAP04
Short Description:

Integrated with DVD/USB/SD
Support Mp3/FM/AM tuner
2 DVD/USB/SD/FM lines output

Manual Book Download:
- Datasheet_X-MAP04_EN1.4.pdf

Digital multi audio player integrated with DVD player, USB and SD interface.



◆ Integrated with DVD player, USB and SD interface. Support Mp3 file, FM/AM tuner
◆ Two independent DVD/USB/SD card/FM lines outputs; Can play music and applications at two zones at the same time. Mix audio RCA output
◆ Two line outputs with independent volume control
◆ Support CD, DVD videos and JPEG
◆ RMVB 720P format decoding and CVBS
◆ Support USB 2.0 high speed, SD Cards
◆ RS458 remote control interface

 Parameter  Value
 Power voltage  ~ 230V 50/60Hz
 Power consumption  <13W
 Input  FM75Ω antenna terminal, USB port, SD port
 Output  Stereo RCA output
 FM/AM tuner: 775mV;
 Stereo RCA output
 DVD/USB/SD: 7750mV;
 Mixed sound RCA
 output: 775mV
 Channel  3
 Dimensions (W x H x D)  482×44×252mm
 Package Dimensions
(W x H x D)
 576×142×351mm
 DVD / CD Audio
 Analog output  2.0±0.2V
 Audio Frequency response  ±3dB
 Distortion  0.05%
 SNR  ≥80dB
 Channel separation  ≥75dB
 Video
 Video output level
Vp-p(V)
 Composite video output: 1.0±0.2
 Horizontal sync: 0.3±0.0
 Horizontal definition
AV output
 VCD: ≥250
 SVCD: ≥320
 DVD: ≥450
 FM/AM
 Band frequency range  FM: 87.5MHz ~ 108MHz
 AM: 531KHz ~ 1710KHz
 Antenna input impendence   FM: 75Ω
