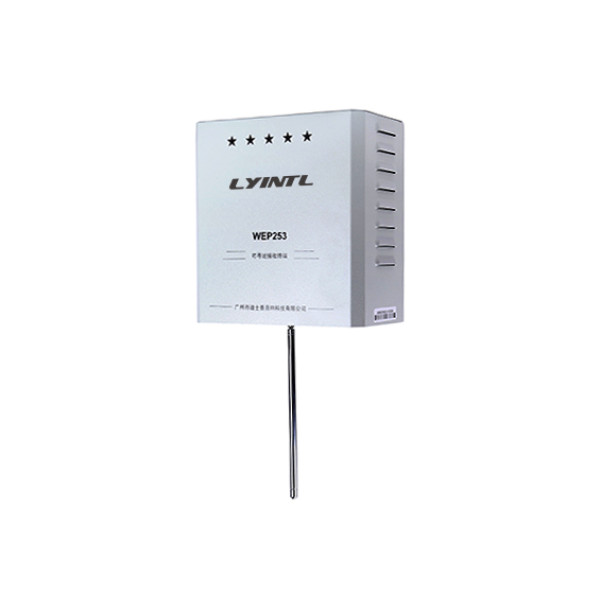

WEP253/WEP253B Wireless Addressable Receiving Terminal

Product ID: WEP253/WEP253B
Short Description:

25W or 50W power output
Wireless addressable receiving

Manual Book Download:
- WEP253.pdf

WEP253/WEP253B is an addressable FM receiving terminal specially designed for wireless public address system. Equipment with FM reception, audio decoding, signal amplification and audio output. Based on DSP digital audio processing technology, high fidelity audio signal output.



Support wireless and wired two transmission modes;

RDS subcarrier decoding;

High reliability signal encryption technology;

Gas lightning protection tube built-in high voltage and strong current, keep the equipment safe from lightning, ensure the system stability and security.



This equipment is suitable for cities and villages emergency broadcasting, schools, parks, squares, factories and other public address places outdoor requirements. It is an ideal choice for outdoor audio reception and signal amplification.



◆ Build-in 25W / 50W high definition power amplifier for speaker output

◆ All-weather outdoor waterproof design, compact and beautiful appearance

◆ Wireless or wired addressable receiving, RDS subcarrier decoding, high reliability encryption, ensure safe broadcasting

◆ Gas lightning protection tube with built-in high voltage and strong current

◆ Protection against thunder and lightning, high reliability

◆ The DSP digital radio unit, high quality output

 Item   Parameter
 FM receiving  Receiving frequency  76-108MHz
 Frequency response  40Hz - 15KHz
 S/N ratio  ≥62dB
 Receiving sensitivity  12dBuV
 Data demodulation  57KHz, RDS encoding
 Line output  Output interface  2 channel RCA
 Output level  1Vrms
 Output impedance  ≤100Ω
 Power & communication  Rated power  25W/8Ω (WEP253)  50W/8Ω (WEP253B)
 Frequency response  40Hz - 15KHz
 S/N ratio  ≥65dB
 Degree of distortion  ≤0.2%
 Mode of communication  RS232, 9600bps
 Power supply  Standby power consumption  ≤0.85W
 Full load power consumption  ≤40W / 80W
 Power supply  AC180~240V / 50H
