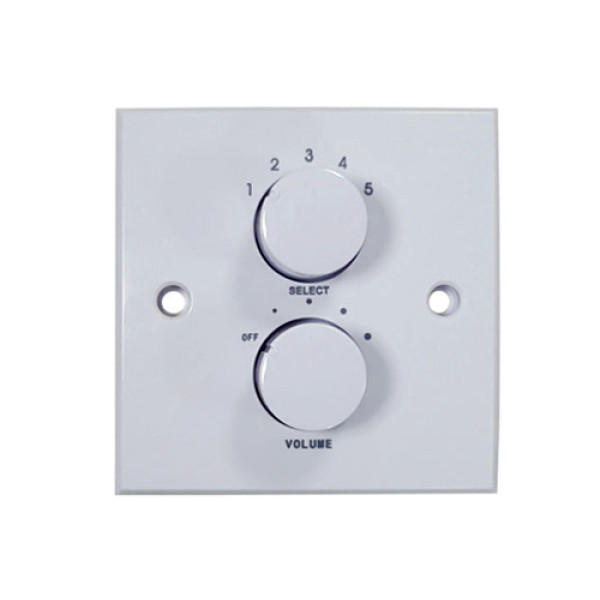

V-605/V-630/V-660/V-6120 5W/30W/60W/120W Volume Controller Combined with Selector
Line input: 100V
Rated power: 5W/30W/60W/120W
With DC24V emergency input
With program selector
| Model | V-605 | V-630 | V-660 | V-6120 |
| Line input | 100V | |||
| Rated power | 5W (resistor) | 30W | 60W | 120W |
| Attenuation per step | 6dB | |||
| Total attenuation | 18dB | |||
| Attenuation positions | 4 plus off | |||
| Material | ABS | |||
| Color | White | |||
| Dimension (mm) | 86x86x52 | |||
| Mounting | Flush and surface | |||
| Net weight (Kg) | 0.06 | |||
| Packing weight (Kg) | 3.9/48pcs | |||
