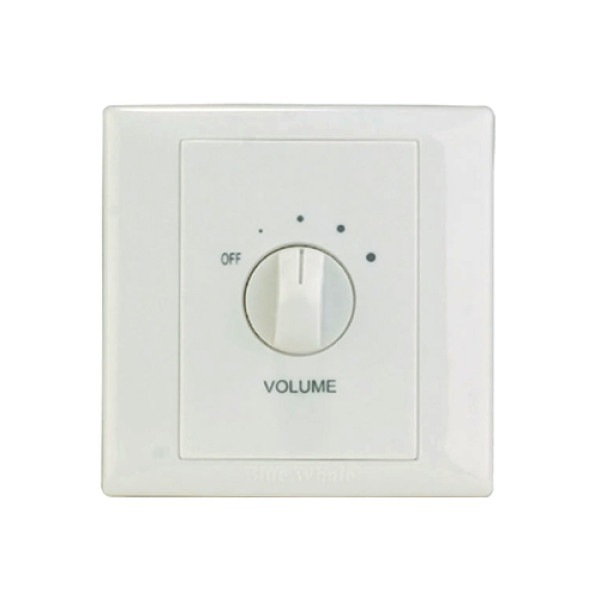

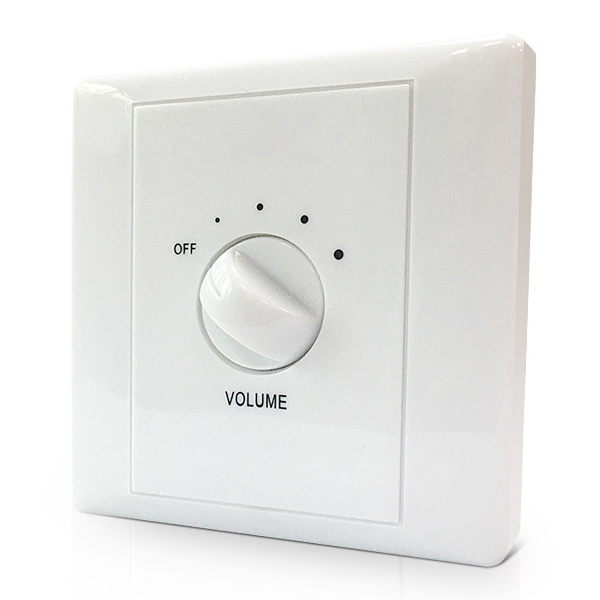

V-505/V-530/V-560/V-5120 5W/30W/60W/120W Volume Controller
Line input: 100V
Rated power: 5W/30W/60W/120W
| Model | V-505 | V-530 | V-560 | V-5120 |
| Line input | 100V | |||
| Rated power | 5W (resistor) | 30W | 60W | 120W |
| Attenuation per step | 6dB | |||
| Total attenuation | 18dB | |||
| Attenuation positions | 4 plus off | |||
| Material | ABS | |||
| Color | White | |||
| Mounting | Flush and surface | |||
| Dimension (mm) | 87x87x44 | |||
| Net weight (Kg) | 0.06 | |||
| Packing weight (Kg) | 4Kg/48pcs | |||
