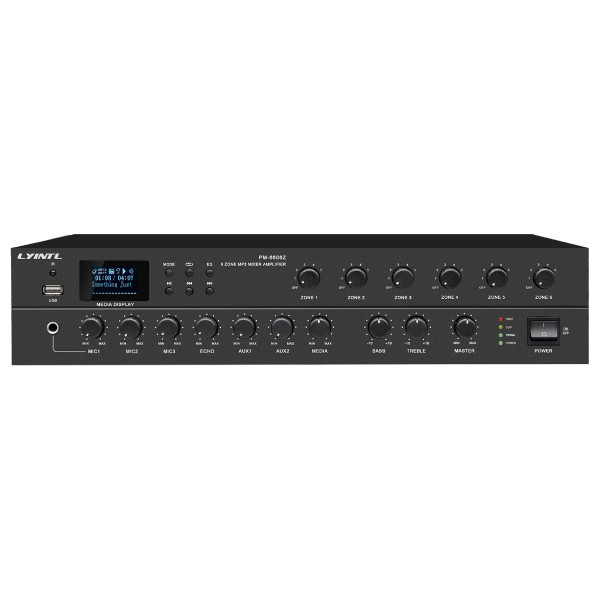

PM-6612Z/PM-6624Z/PM-6635Z/PM-6650Z/PM-6665Z 6-Zone Bluetooth Mixer Amplifier with USB & FM

The LYINTL PM-6600Z Series is a professional range of 6-zone mixer amplifiers designed for commercial public address, background music, and voice announcement applications.

Built on a reliable Class AB amplifier platform, the series combines high-performance amplification, flexible audio mixing, independent zone control, and integrated multimedia playback into a single rack-mount solution. Available in multiple power ratings from 120W to 650W, the PM-6600Z Series is suitable for a wide range of installations including retail stores, schools, offices, hotels, restaurants, factories, and public facilities.

Each amplifier provides six independent 100V speaker zones with dedicated front-panel volume controls, allowing users to distribute audio to different areas while adjusting volume levels individually. The system supports both constant-voltage and low-impedance speaker systems with 70V, 100V, 4Ω, and 8Ω outputs.

The built-in multimedia player supports USB playback, Bluetooth wireless streaming, FM radio reception, and AUX audio sources. A high-definition LCD display provides real-time operating information and media status.

For microphone applications, the amplifier features three microphone inputs. MIC1 includes priority muting functionality, automatically overriding background music during announcements. MIC2 and MIC3 support 48V phantom power and accept both balanced XLR and unbalanced 6.35mm microphone connections. A built-in echo processor enhances vocal clarity and performance.

Comprehensive protection circuitry safeguards the amplifier against overload, short circuits, overheating, and abnormal operating conditions, ensuring long-term reliability in professional installations.

Key Features

6 Independent Speaker Zones

Supports six separate 100V speaker zones with individual volume control.

Built-in USB, Bluetooth & FM Player

Integrated multimedia playback for background music and announcements.

Class AB Amplifier Design

Reliable audio performance with excellent sound quality.

70V / 100V & 4/8Ω Outputs

Compatible with both constant-voltage and low-impedance speaker systems.

MIC Priority Function

MIC1 automatically overrides background music for paging announcements.

48V Phantom Power Support

MIC2 and MIC3 support condenser microphones via balanced XLR inputs.

Built-in Echo Effect

Enhances vocal performance for announcements and speech applications.

Complete Protection Circuitry

Protection against overload, short circuit, overheating, and abnormal voltage conditions.

Applications

The PM-6600Z Series is ideal for:

• Retail Stores
• Shopping Centers
• Hotels & Resorts
• Restaurants & Cafés
• Schools & Universities
• Office Buildings
• Factories & Warehouses
• Churches
• Community Centers
• Commercial PA Systems

Specifications may be subject to change without prior notice.
