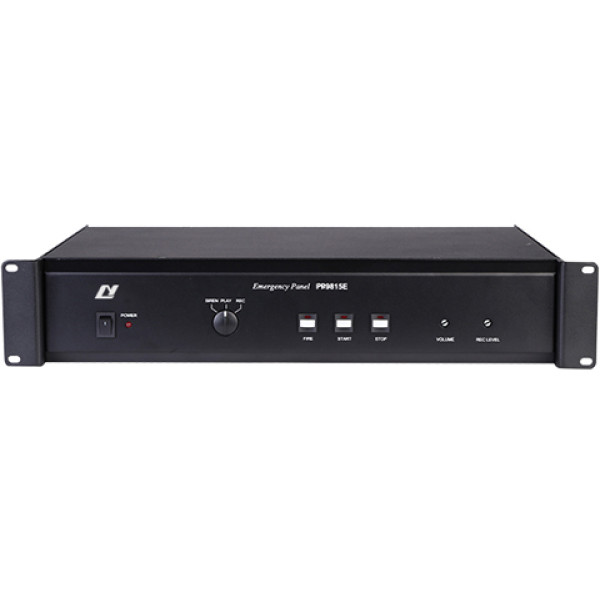

PB-9815E Emergency Panel
◆ Alarm triggering / siren / recorded signal output
◆ 1 minute digital REC / PLAY IC
◆ Record level control
◆ Output volume control
◆ Friendly control panel, easy for use
| Item | Parameter |
| Input | Mic: 2mV 10kΩ Line: 1V 10kΩ Alarm: 0V/+24V (or open), 0V (short circuit) is valid |
| Output | Siren or recorded signal: 1V |
| Record IC | IC inside, 60s |
| Frequency response | 100Hz-10kHz (±3dB) |
| Protection | AC fuse |
| Power consumption | AC 220-240V/50-60Hz |
| Packing dimension (mm) | (L×W×H) 530×440×195 |
| Product dimension (mm) | (L×W×H) 484×365×88 |
| Gross weight (Kg) | 8.8 |
| Net weight (Kg) | 7.1 |
