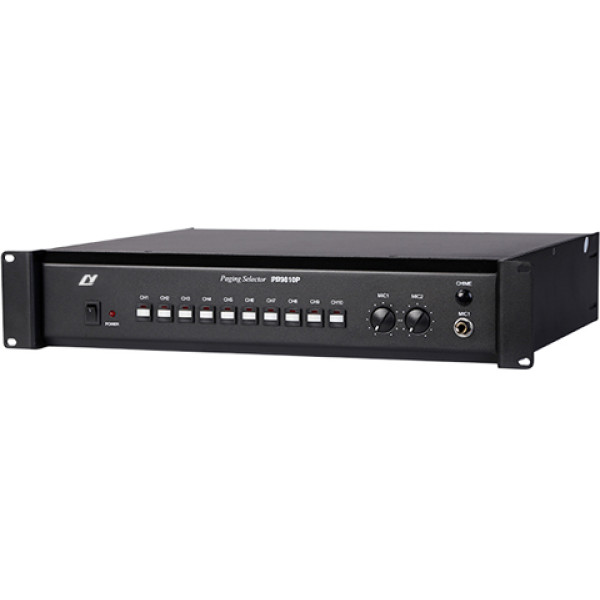

PB-9810P 10 Channel Paging Selector
Product ID:
PB-9810P
Short Description:
10 Channels paging or alarm
2 MIC & 2 line input
Built-in chime & mute
◆ 10 channels paging selects
◆ 10 channels alarm input & active output
◆ 2 Mic & 2 Line input
◆ Chime & Mute function
◆ Remote–control available, can work with PB-9810R (remote paging microphone)
| Item | Parameter |
| Mic input | 600Ω, 2.5mV, unbalanced |
| Line input | 10KΩ, 250mV, unbalanced |
| Audio output | 0dBV |
| Frequency response | Mic: 100Hz-15kHz (±3dB); Line: 20Hz-18kHz(±3dB) |
| S/N ratio | Mic input: 80dB Line input: 90dB |
| ALM Activation Level | 0V or +12 to 24V preset available |
| Protection | AC fuse |
| Operating power supply | AC 220-240V/50-60Hz |
| Outer packing size (mm) | (L×W×H) 530×440×195 |
| Product size (mm) | (L×W×H) 484×365×88 |
| Gross weight (Kg) | 8.8 |
| Net weight (Kg) | 7.0 |
