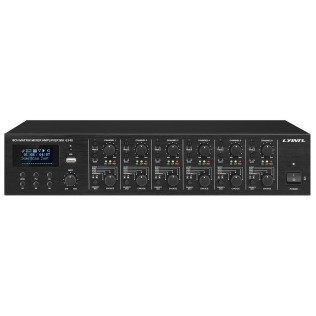

MA-6240 6 Zone 240W Digital Matrix Mixer Amplifier with USB, Bluetooth, FM & Remote Paging
Product ID:
MA-6240
6 Zones with 240W output per zone
USB MP3, Bluetooth & FM audio sources
Flexible matrix audio distribution system
Remote paging with individual zone selection
Expandable up to 36-zone PA systems
The LYINTL MA-6240 is a professional 6-zone digital matrix mixer amplifier designed for commercial public address and background music systems. Featuring six independent 240W amplifier channels, advanced Class-D amplifier technology, and flexible matrix audio routing, it delivers reliable multi-zone audio distribution for commercial installations.
With built-in USB MP3, Bluetooth, FM tuner, remote paging support, and expandable 36-zone capability, the MA-6240 is an ideal solution for shopping malls, hotels, schools, office buildings, hospitals, factories, and other large-scale PA applications.
Main Features
Powerful 6-Zone Audio Distribution
Provides 6 independent amplifier channels, each delivering 240W output, allowing different audio programs and volume control for individual zones.
Flexible Matrix Audio Routing
Supports five selectable audio sources (Internal Music, AUX1–AUX4), allowing each zone to independently select the desired audio input.
Built-in Multimedia Player
Integrated USB MP3 player, Bluetooth, and FM tuner provide convenient audio playback without additional external devices.
Remote Paging & Zone Control
Supports up to 4 remote paging microphones for flexible voice announcements to individual or multiple selected zones.
Expandable Up to 36 Zones
Multiple MA-6240 amplifiers can be linked together to build a 36-zone public address system, making it suitable for medium and large commercial projects.
Alarm & Emergency Priority
Built-in alarm interfaces and EMC priority input ensure emergency broadcasts automatically override background music and other audio sources for reliable public announcements.
Efficient Class-D Amplifier Design
Advanced Class-D technology delivers high efficiency, low heat generation, reduced power consumption, and stable performance for continuous commercial operation.

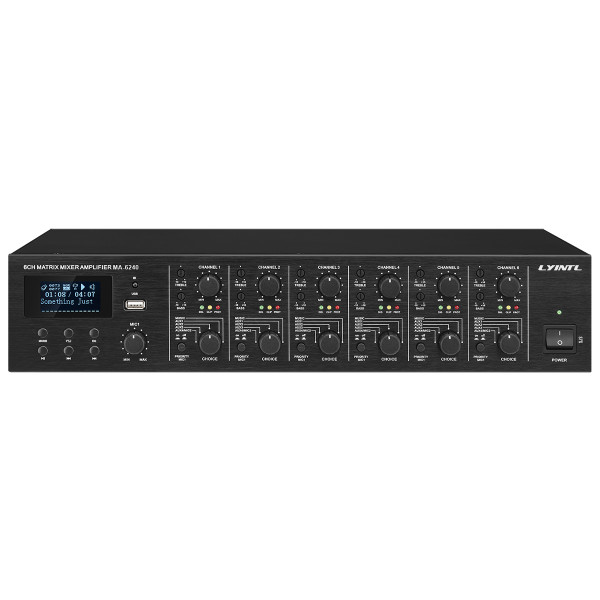

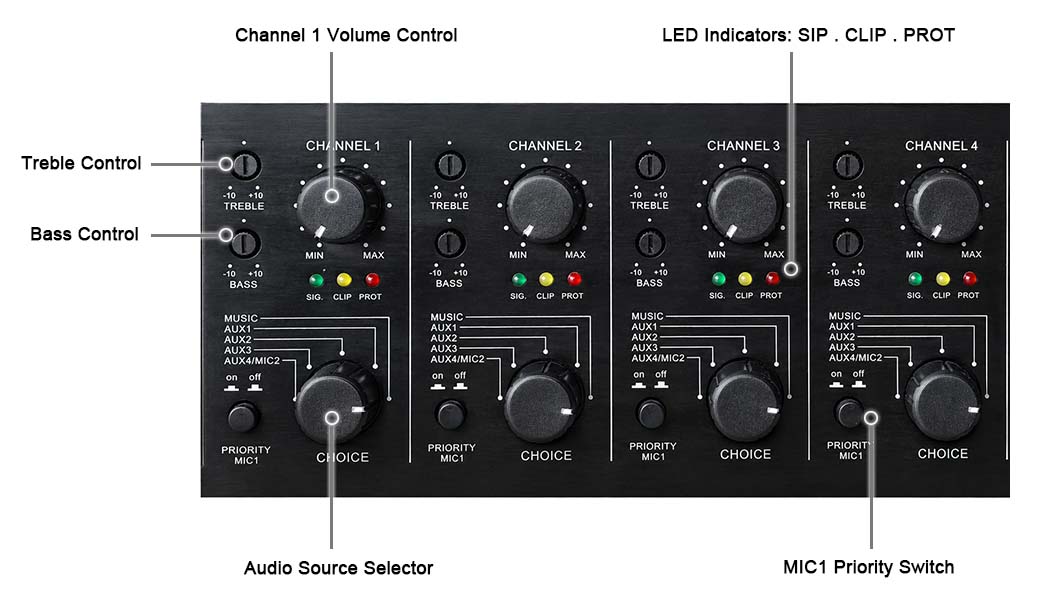

Front Panel Zone Control

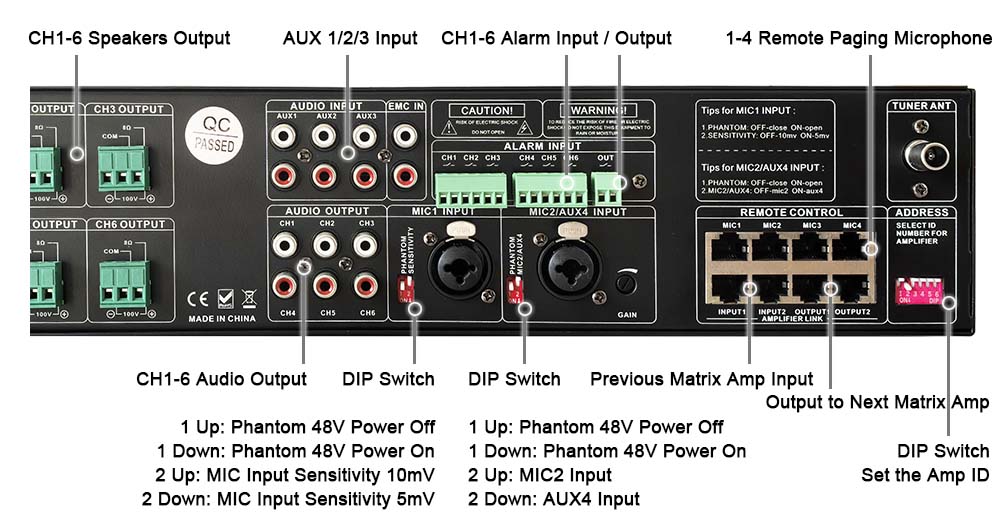

Rear Panel
Applications
The MA-6240 6-zone digital matrix amplifier is suitable for:
- Shopping malls
- Hotels and resorts
- Schools and universities
- Office buildings
- Hospitals
- Factories and warehouses
- Transportation facilities
- Conference centers
- Commercial background music systems
- Multi-zone public address systems
| Item | Parameters |
| Model | MA-6240 |
| Type | 6 Zone Digital Matrix Power Amplifier |
| Rated Power Output | 6CH × 240W |
| Amplifier Technology | Digital Class-D Amplifier |
| Compatible Media | USB / Bluetooth / FM |
| Matrix Audio Sources | 5 Sources (Internal Music / AUX1 / AUX2 / AUX3 / AUX4) |
| Line Inputs | 4 × AUX Inputs (AUX1-AUX4) |
| Line Outputs | 6 × Zone Outputs (CH1-CH6) |
| Amplifier Extension Output | 6 Zones, up to 2500W additional power per zone |
| Remote Paging Microphone Ports | 4 × RJ45 Ports |
| Alarm Inputs | 6 Channels (CH1-CH6), 0V Dry Contact Trigger |
| Alarm Output | 1 × 0V Dry Contact Output |
| USB Port | 1 |
| EMC Input | 1 |
| Priority Level | EMC > Remote Microphone > Local Microphone > Other Audio Sources (Bluetooth/USB/AUX) |
| Frequency Response | 80Hz ~ 18kHz |
| Maximum Zones | 36 Zones |
| Protection | Short Circuit / Overload / High Temperature Protection |
| Power Supply | 220VAC ±10%, 50/60Hz |
| Power Consumption | 6CH × 320W (Standby <25W) |
| Dimensions (W×D×H) | 430 × 330 × 90mm |
| Packing Dimensions (W×D×H) | 520 × 410 × 185mm |
| Net Weight | 7.55kg |
| Gross Weight | 9.60kg |
System Connection
