M-9525GA 2*20W Active IP Network PA System Wall Mount Speaker Combined with 2.4G Wireless Receiver
Product ID:
M-9525GA
Short Description:
Built-in 2×20W amplifier and 2.4G wireless receiver
Supports TCP/IP, UDP, IGMP protocols
Features wired/wireless MIC inputs, priority control, and centralized IP management

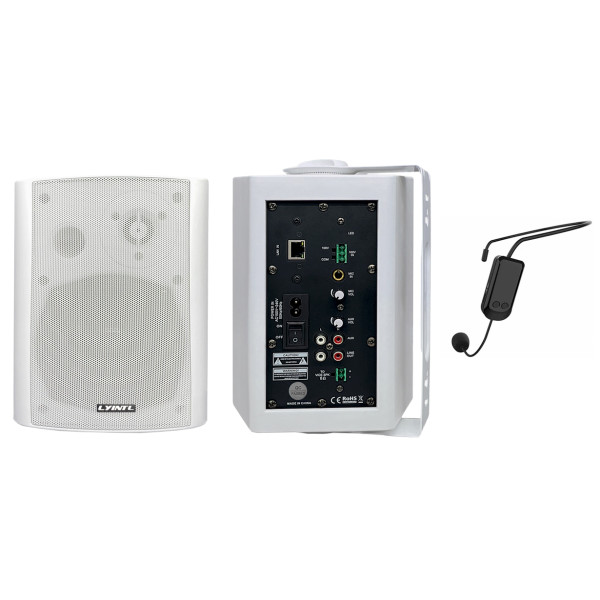

The M-9525GA Wall Mount IP Network Speaker is an upgraded version of the M-9525G, integrating a 2.4G wireless receiver module and supporting both wireless and wired microphones. This active + passive speaker set combines IP network audio technology, DSP sound processing, and wireless microphone compatibility, making it the perfect solution for classrooms, training centers, conference rooms, and professional public address applications.
Compatible with the M-9200 Intelligent IP Network PA System Control Center and M-9210S IP Network Paging Station, the M-9525GA offers high-quality sound, easy installation, and flexible wireless presentation features in one system.
Key Features
-
Integrated 2.4G Wireless Receiver
Works with included 2.4G wireless headset microphone, providing stable transmission within 15–20 meters. -
Wireless Headset Microphone
-
Built-in rechargeable lithium battery (charged via Micro USB)
-
Automatic mute function when signal is weak or lost
-
Continuous talk time over 5 hours for all-day use
-
-
Flexible Microphone Options
-
External MIC input port for wired headset microphone
-
Independent volume control for MIC and Line inputs
-
-
High-Performance Network Audio
-
Embedded computer + DSP audio processing
-
16-bit stereo CD-quality sound transmission
-
Built-in Class D amplifier with 2 × 20W power output
-
-
Seamless Network Integration
Supports TCP/IP, UDP, IGMP multicast, with centralized management and 100-level audio priority control. -
Durable & Stylish Design
ABS housing with iron grille (black/white optional), ideal for professional indoor environments. -
Easy Installation & Global Power Supply
Digital IP-based system, simple wiring, and AC100–240V wide voltage support.
Application Scenarios
-
Education: classrooms, lecture halls, training centers
-
Corporate: meeting rooms, offices, conference halls
-
Commercial: shopping malls, retail stores, showrooms
-
Healthcare: hospitals, clinics, public service buildings
-
Hospitality: hotels, resorts, multi-function halls
| Model Number | M-9525GAA |
|---|---|
| Network Interface | Standard RJ45 |
| Supported Protocols | TCP/IP, UDP, IGMP (multicast) |
| Audio Format | MP3 / MP2 |
| Sampling Rate | 8kHz – 48kHz |
| Transmission Speed | 100Mbps |
| Audio Mode | 16-bit stereo CD quality |
| Frequency Response | 80Hz – 16kHz |
| THD (Distortion) | ≤1% |
| Signal-to-Noise Ratio (SNR) | >70dB |
| Rated Power Output | 2 × 20W @ 8Ω (active + passive) |
| Line Input Sensitivity | 350mV |
| MIC Input Sensitivity | 5–10mV |
| 2.4G Transmitter Size | 100 × 33 × 18 mm |
| Microphone Type | Condenser, uni-directional |
| Microphone Sensitivity | -38 dB |
| Wireless Frequency Range | 2400–2482 MHz |
| Frequency Response (MIC) | 40Hz – 16kHz |
| Modulation Method | GFSK |
| RF Power | 0 dBm |
| Wireless Transmission Distance | 15–20 m |
| Transmitter Power Supply | Built-in lithium battery, 3.7V |
| Continuous Working Time | ≥ 5 hours |
| Operating Temperature | 5℃ – 40℃ |
| Operating Humidity | 20% – 80% RH |
| Power Consumption | ≤70W |
| Power Supply | AC100V – 240V, 50Hz |
| Speaker Dimensions | 245 × 162 × 182 mm |
| Weight | 5.5 kg |
