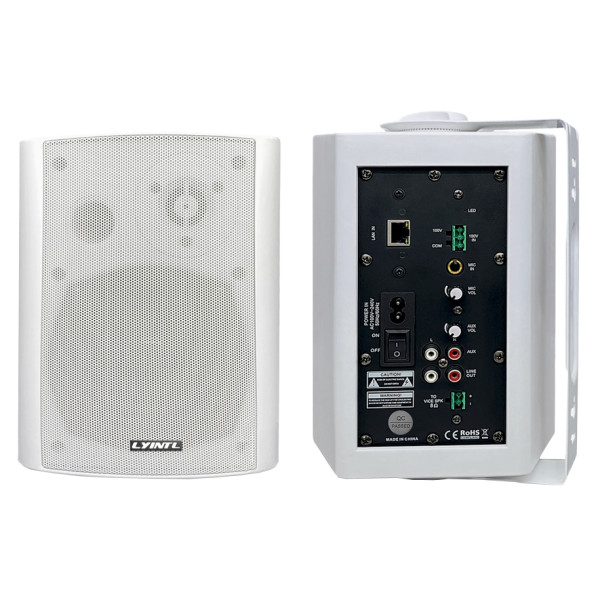

M-9525G 2*20W Active IP Network PA System Wall Mount Speaker

The M-9525G Wall Mount IP Network Speaker is a professional-grade audio solution designed for modern IP-based public address and background music systems. Featuring advanced embedded computer technology and DSP audio processing, this active + passive speaker set delivers crystal-clear sound quality, powerful performance, and seamless network integration.

It is perfectly compatible with the M-9200 Intelligent IP Network PA System Control Center and M-9210S IP Network Paging Station, making it an ideal choice for schools, offices, shopping malls, hospitals, hotels, and other large-scale audio distribution applications.

Key Features

• Premium Wall-Mount Speaker Design
  ABS plastic housing with iron grille (black or white), ensuring durability and modern aesthetics for indoor installations.

• High-Performance Audio Processing
  Built with embedded computing technology and DSP audio processing, ensuring refined sound and stable operation.

• Fast Boot & Industrial-Grade Chipset
  Equipped with a high-speed industrial chip, boot-up time is less than 1 second.

• Network Audio Decoding
  Integrated IP audio decoding module, supporting TCP/IP, UDP, IGMP (multicast) protocols.

• CD-Quality Sound Transmission
  Supports 16-bit stereo audio streaming over the network with excellent clarity.

• Built-in Class D Amplifier
  Delivers 2 × 20W RMS output power, offering strong and detailed sound.

• High-Quality Speaker Components
  Mica carbonized polypropylene diaphragm ensures clear voice reproduction and enhanced music performance.

• Flexible Audio Input Options
  1 × Line input + 1 × MIC input, each with independent volume control.

• Audio Priority Management
  Supports 3-level signal priority, 100-level mute control, and built-in audio mixing for smooth broadcasting.

• Centralized Control & Security
  Supports server-side authorization, user management, and password control for secure operation.

• Wide Network Compatibility
  Compatible with routers, switches, gateways, Modems, Internet, 2G/3G/4G, multicast & unicast network structures.

• Easy Installation & Scalability
  Digital IP-based design, no additional control room equipment required, and easy system expansion without location limitations.

• Power Supply Flexibility
  Built-in switch-mode power supply, AC100V–240V, suitable for global applications.

Application Scenarios

• Educational institutions (classrooms, lecture halls, campuses)

• Corporate offices and conference centers

• Shopping malls and retail stores

• Hospitals and healthcare facilities

• Transportation hubs (airports, train stations, bus terminals)

• Hotels, resorts, and hospitality venues
