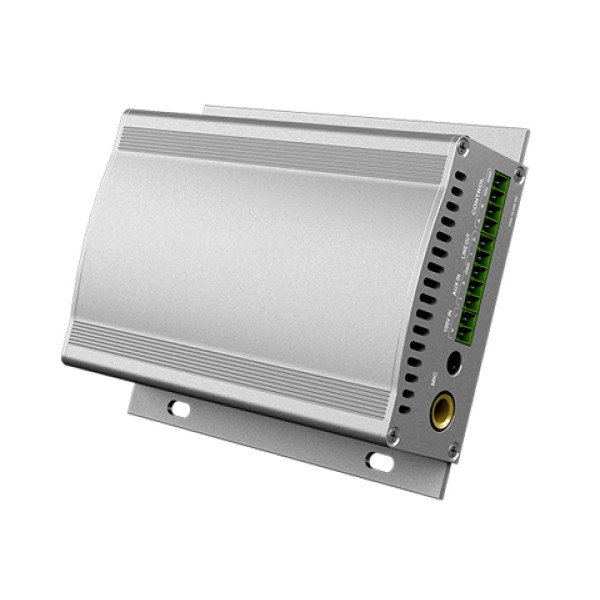

M-9136 Stereo IP Network Terminal with 2*20W Amplifier
The device is a multi-functional network audio decoding player integrated with multi-channel audio input and remote intercom. It can decode and play built-in and network audio sources, can accept the server and other network equipment access and control. Also, it has offline playing function, can run independently from the network.
◆ Build in 2*20W stereo digital amplifier
◆ Based on TCP/IP protocol, multi-function pre-player
◆ Support separated running form host and network
◆ Audio source: AUX, 100V line input, MIC, network audio, built-in source
◆ Support large capacity storage, built-in program source
◆ Audio format: MP3, WMA, WAV, FLAC, APE, etc.
◆ MIC sensitivity adjustable, with whistle suppression, echo removal technology
◆ Support remote one-button paging and intercom
| Item | Name | Specification |
| Audio input | MIC input sensitivity | 10mV |
| AUX input sensitivity | 1.0V | |
| 100VInput sensitivity | 100V | |
|
Internet port |
RJ45 10/100M (support POE, M-9136E) | |
| Audio output | LINE output | 1.0V |
| Control interface | I/O port input | 5-24V DC， photoelectric isolation |
| I/O port output | Normal delay input, 30V/1A，AC/DC | |
| RS485 | 19200bps | |
| VDD input | 12-24V | |
|
Other specification |
Power input | ①100-240V AC; ②12-24V DC; ③POE (M-9136E) Note: support all the electric mode above |
| Dimension (mm) | 35*125*100 | |
| Net weight (Kg) | 0.5 |
