Product ID: M-9131/M-9134
Short Description:

1 or 4 CH decoding player
Off-line working available
Support external audio input

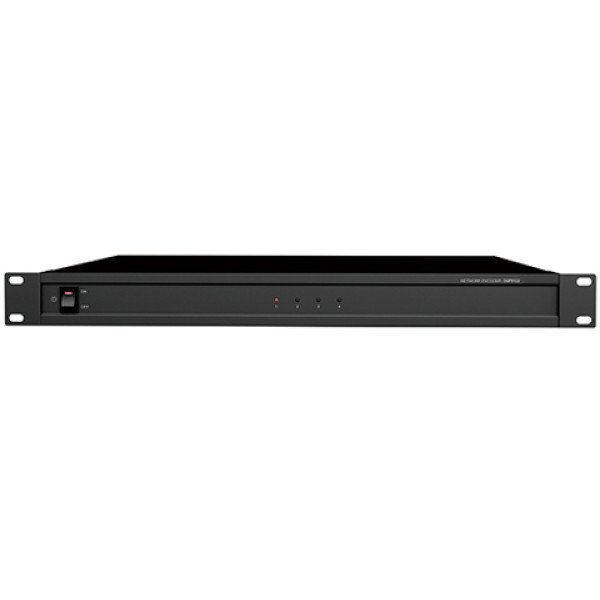

M-9131/M-9134 IP network terminal is a multiple channel (1 or 4) audio input, network decoding player. Support offline working, can run independently from the network, suitable for different occasions.



◆ Based on TCP/IP protocol, IP network multifunctional player

◆ Built in independent IP control module and audio input module, independent decoding

◆ Single channel (M-9131) or 4 channel (M-9134) model

◆ Support loop detection (single channel model)

◆ Support energy saving mode (single channel model), when there is no audio signal input, the

◆ power amplifier can be used for standby energy saving

◆ Can be separated from network and host

◆ Built in large capacity memory, built-in program source with timing function

◆ Support audio format: MP3, WMA, WAV, FLAC, APE, AAC

◆ Support external audio input

◆ Background music, emergency paging and alarm signals from the system host can be played

◆ Can be controlled and played by network broadcast management software

◆ 1 U design, small space and light weight

 Item  Specification  Parameter
 Audio input  AUX input sensitivity  1.0V
 Network interface standard RJ45(10/100M)
 Audio output  LINE out 1.0V
Relevant agreement Support protocol  DHCP, TCP/IP, UDP, ICMP, IGMP(Multicasting), 802.1x, HTTP, HTTPS, FTP, DNS, DDNS, RFC3261, RTP, RTSP, RTCP, UPnP
Other specifications



 Power input  ~220V/50Hz
 Product size (mm)  44×430×213
 Gross weight (Kg)  2.3
