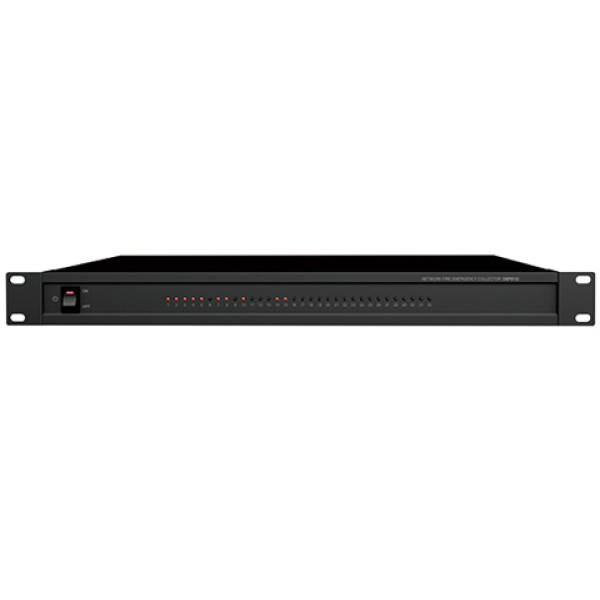

M-9102 32 Channel IP Network Fire Alarm Terminal

Product ID: M-9102
Short Description:

32 CH fire alarm input
Support short circuit & 5V-24V signal
Based on TCP/IP protocol

Manual Book Download:
- M-9102.pdf

Used for collecting occasion's monitoring, smoke detection and emergency signals.

When alarm signal is received, the IP Network Fire Alarm Terminal will send the signal to the server for forced insertion of the emergency broadcast sound.


Based on TCP/IP protocol

32 Channel fire alarm signal input, 32-way independent control, support adjacent zone alarm

Support short circuit and 5V-24V signal

Alarm sound signal can be customized via management software

10 / 100M adaptive, support DHCP/static IP, support LAN and WAN

Control area can be extended by connecting more pieces of this device to the network

1 U slim small size design

 Item  Specification
 Channels supported  32
 Way of display  LED
 Protocol supported  TCP/IP, UDP, ICMP, IGMP (Multicast)
 Activate neighbor  Multiple, programmable
 Trigger signal level  5V-24V
 Protection  AC fuse×1
 Input mode  Short circuit, 12V~24V
 Power input  ~220V/50Hz
 Network  RJ45 (10/100M)
 Size (mm)  44×430×213 (H×W×D)
 Net weight (Kg)  2.3
