Product ID: M-9101
Short Description:

Zone/group paging
Status displaying on screen
No zone quantity limitation

Manual Book Download:
- M-9101.pdf

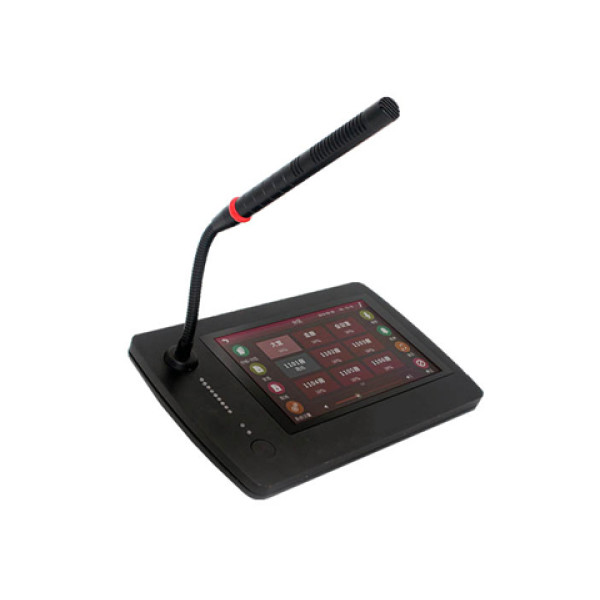

M-9101 network Hi-Fi paging station based on TCP/IP transmission protocol, this smart paging station can be linked to anywhere reachable to the network, and achieve to control up to 200 partitions. In addition to the build-in AUX input and output channels, this device can achieve local monitoring of the host program.



◆ TFT true-color LCD + capacitive touch screen, supporting five-point touch control

◆ Can page up to 200 zones, single paging or group paging

◆ Partition and group status display as required

◆ Broadcasting songs in program database of the host to partitions

◆ 1 AUX input, 1 AUX output, 2 MIC input, 1 EMC output, 1 short circuit output

◆ Device can be powered off automatically in case of no signal input within the pre-set time period

 Item  Specification  Parameter
 AUX input  Input impedance  >10KΩ
 Input sensitivity  0dB (1V)
 Frequency response  20Hz – 20kHz
 AUX output  Output impedance  <100KΩ
 Output amplitude  1.0±0.1V
 Frequency response  20Hz – 20kHz
 Degree of distortion  ≤0.1%
 Signal-to-noise ratio  ≥90dB
 MIC input  Input sensitivity  40±10mV
 Degree of distortion  ≤0.5%
 Effective frequency range restricted by gain (±3dB)   80Hz – 4kHz
 Signal-to-noise ratio (30K low pass)  ≥75dB
 Interface  Network interface  RJ45 10/100M self-adaptation
 Audio input interface  3.5mm earphone jack
 Audio output interface  3.5mm earphone jack
 Other specification

 Input power supply

 AC100 – 240V 50Hz/60Hz
 Working ambient temperature  -20 - +55oC
 Product dimension (mm)  150 x 240 x 65
 Net weight (Kg)  1.28
