M-808C 8 Zone Remote Control Panel

Product ID: M-808C
Short Description:

Partition source control and volume control
MP3 play and independent volume control
1 AUX & 1 MIC input

Manual Book Download:
- M-808C.pdf

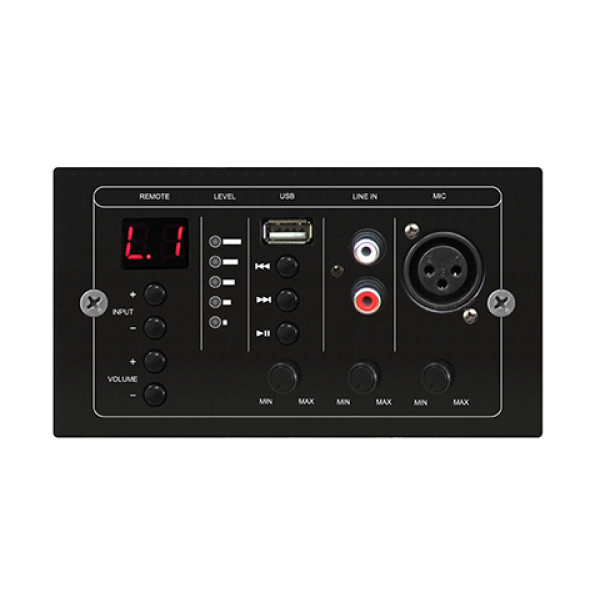

M-808C is 8 zones remote control panel, it has a digital screen and suppots DC24V, this panel has 1 MIC and 1 line input with independent volume control knob respectively.

◆ Network port balanced output audio
◆ Audio signal level indicator
◆ Partition source control and volume control
◆ With digital screen & 24V DC power supply
◆ MP3 play and independent volume control
◆ 1 line input and independent volume control
◆ 1 MIC input and independent volume control

 Model  M-808C
 Input sensitivity  MIC  10±2mV
 Line  300±50mV
 USB  -10dB
 Frequency response  MIC  100Hz~15kHz (±3dB)
 AUX  100Hz~15kHz (±3dB)
 Noise  <0.5mV
 Distortion  Distortion
 Power supply  DC 24V
 Net port output level (balance)  2000±100 mV
 Product size (L×W×H) mm  145×80×47
 Packing size (L×W×H) mm  310×180×95
 Net weight (Kg)  0.4
 Gross weight (Kg)  0.7 (1pc)
