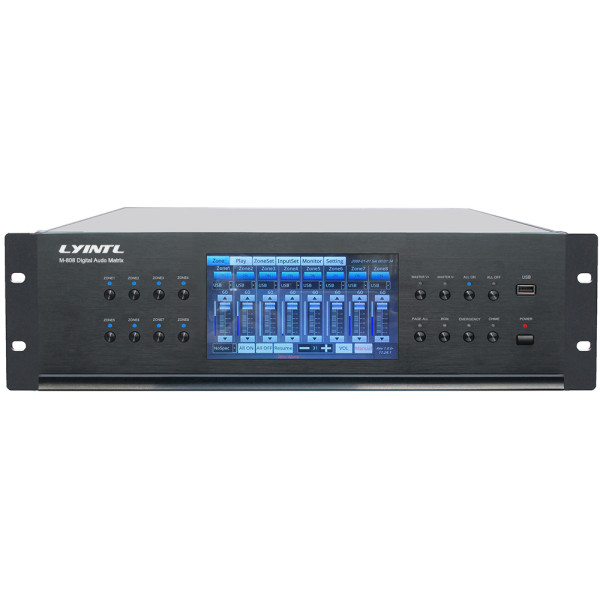

M-808 8x8 Digital Audio Matrix

Product ID: M-808
Short Description:

8 input 8 output digital audio matrix
Support 4 remote paging station
Remote panel control for each zone

Manual Book Download:
- M-808_V0.3.pdf

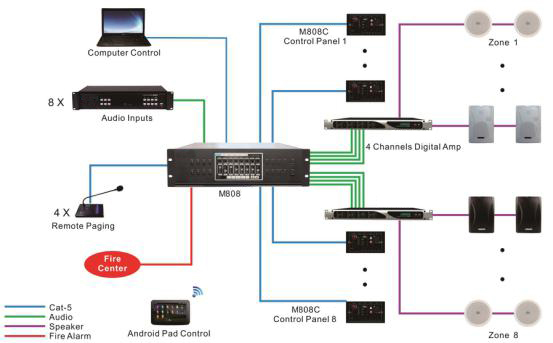

Complete PA system solution for multi-zone, multi-functional venues like entertainment place, large-scale hotel, sports center, shopping mall, airport, etc.

◆ 7" touch screen
◆ 8 channel balanced audio input, 8 channel balanced audio output
◆ Each channel with individual EQ control, support remote panel control, includeing audio selection, audio input and volume control
◆ Support 4 remote paging microphone, 2 local MIC with phantom power supply
◆ Build-in MP3 player (internal or external audio) and FM tuner
◆ Build-in one-touch alarm, chime input, fire alarm input, 8 dry contract inputs and one dry contact output
◆ Build-in TEL input module, with password management, support TEL paging to all zones
◆ Support monitroing function, can monitor each individual zone separately
◆ Support remote PC control and Android pad control within the same LAN network
◆ Support AC Power input and DC 24V input
◆ Timing playing function

 Model  M-808
 Line1-8 input voltage  1V
 Input sensitivity  MIC1, 2  10mV
 Line1-8  250mV
 EMC  250mV
 Line1-8 output voltage  1V
 Response Frequency  MIC input & output  80Hz~10KHz (±3dB)
 Line input & output  20Hz~20KHz (±3dB)
 Radio frequency band  86-108 MHz
 Max. output noise  <3mV
 Output distortion  <1% @1KHz
 Machine size (mm)  484×375×132
 Packing size (mm)  540×510×195
 Power supply  230V/50Hz
 DC 24V
 Net weight  (Kg)  10
 Gross weight (Kg)  13
