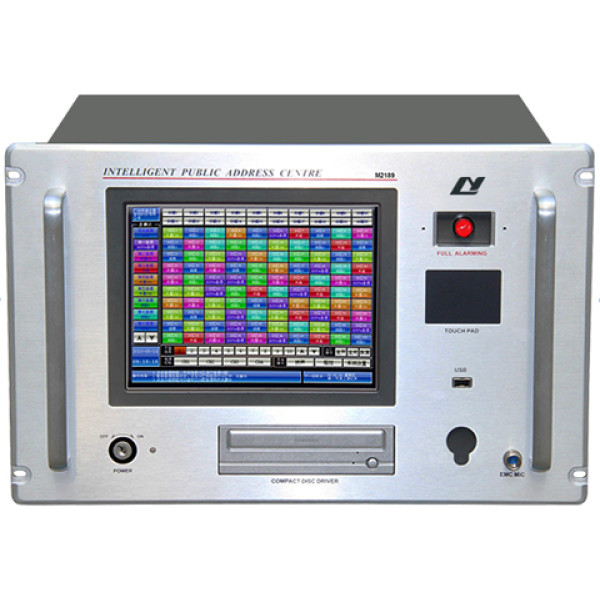

M-2189 250 Zones Intelligent Public Address Center
This M-2189 PA control center is a powerful 50x250 zones audio matrix PA system control center. It has a 10.4’’ color touch screen and automatic display Chinese/English display, operating conveniently and easily.
It is a Public Address System solution suitable for medium and large venues like station, stadium, exhibition center, commercial building, park, scenic port, government, college or university, hotel, villa, industry, bank, jail and so on
◆ 10.4’’ color touch screen operation
◆ 50×250 strong digital broadcasting matrix
◆ 1-48 remote control partition paging channels
◆ Fire control/disastrous alarms, paging, phone calls break in automatically
Built-in optional modules:
Normal input
Priority input
Paging input
Partition normal output
Monitoring
Extended output/input module and so on
| Model | M-2189 |
| Screen size | 10.4 inches |
| Control | Touch pad + Touch screen |
| Work environment | Temperature.：5-35℃; Humidity：0.75%; Pressure: 86-106kPa |
| Timing power | Single-channel current 2A, 4-channel total current 5A |
| Power timer capacity | Mono 2A，4 channels total 5A |
| System audio N/S | LINE: 75dB MIC: 60dB |
| System audio distortion | Less than 0.1% @ 1kHz |
| System audio input levels | LINE: 250mV MIC: 3mV |
| System audio impedances | LINE:10kΩ MIC: 600Ω |
| System audio output level | 0dBV |
| Power supply | AC 220-240V/50-60Hz/120W |
| Outer Packing Size (mm) | (L×W×H) 575×545×445 |
| Machine Size (mm) | (L×W×H) 484×485×305 |
| Gross Weight (Kg) | 37.6 |
| Net Weight (Kg) | 23.6 |
| Packing list | 1 manual 1 power supply cord 2 keys 1 protecting glass |
| System software | PMM software pack, licensed |
