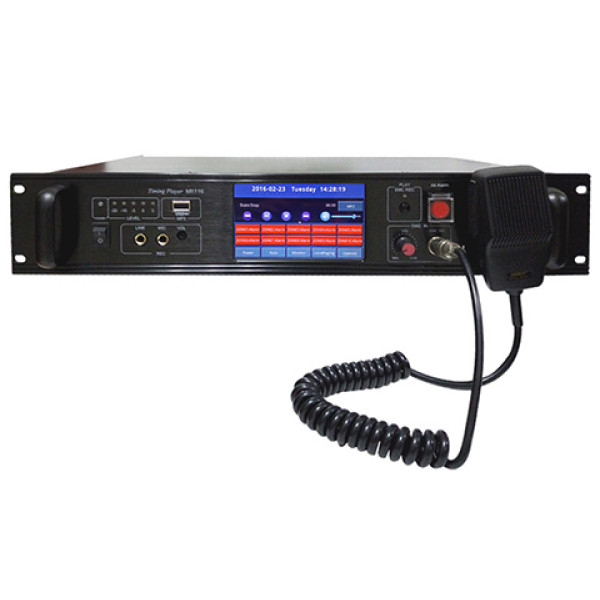

M-1116 10 Zone Intelligent Public Address System Control Center

Product ID: M-1116
Short Description:

5 audio input, 2 MIC input
10 zones matrix output
USB/SD, FM, AUX input

Manual Book Download:
- M-1116.pdf

5" LCD touch screen display, built-in 1G memory

1 channel of fire alarm switch and emergency microphone

1 audio playback button, which is used to play the emergency audio recording; the audio shall be recorded with the MIC or LINE port on the panel

Background sound source recording, the audio shall be recorded with the MIC or LINE port on the panel

Level indicator: It is used to indicate the outputs of all the signal sources

4 channel of timing power time sequencer (maximum gross power of 220V/2000W) and 1 channel of short circuit triggering interface (trigger control time sequencer)

2 channel of paging microphone interface (connected to PB-9810R paging microphone), 1 channel of background and 1 channel of emergency (paging) line output, 1 channel of wireless microphone input

It is possible to connect 5 background power amplifiers (maximum input power of each power amplifier is 400W) and 1 emergency (paging) power amplifier (maximum input power is 2000W)

Partition CH1 to CH10 output terminals are connected to the loudspeakers in the corresponding partitions respectively, in order for the direct output of the audio signal Maximum gross power is 2000W, average maximum power of each partition is 200W; every power amplifier corresponds to 2 channels of partitions. That is to say that the first channel of the power amplifier corresponds to partition No.1 and partition No.2; the second channel of the power amplifier corresponds to partition No.3 and partition No.4, and so on

10 channel of short circuit triggering

Equipped with 4Ω/10W (1kHz, 1% degree of distortion) monitoring output

BGM source with FM Tuner, USB, SD and AUX input

5 sets timing programs with each 200 timing points

 Model  M-1116
 Channel A output at 1V/1KHZ sine wave  MP3 input sensitivity  200-350mV
 Line recording input sensitivity  200-350mV
 Microphone recording input sensitivity  2-3.5mV
 Channel B output at 1V/1KHZ sine wave  Microphone input sensitivity  2-3.5mV
 Wireless microphone input sensitivity  200-350mV
 Remote paging input sensitivity (voltage at pin No.8 and No.9)  1000±100mV
 Line recording input sensitivity  200-350mV
 Microphone recording input sensitivity  2-3.5mV
 Maximum noise  Channel A/B (When channel B is switched to wireless microphone)  ≤0.5mV
 When channel B is switched to local microphone input  ≤1mV
 Monitoring  ≤1.5mV
 Degree of distortion (Output of 1KHZ 1V)  Channel A/B (Input of line)  ≤0.3%
 Channel B (Input of local microphone)  ≤0.5%
 Frequency response (±3dB)  Microphone input frequency response  50-20KHz
 PC1010R input frequency response  50-20KHz
 Wireless microphone input frequency response  100-20KHz
 MP3 output frequency response  200-20KHz
 Line recording input frequency response (output of channel A)  350-20KHz
 Line recording input frequency response (output of channel B)  100-10KHz
 Monitoring  (220V power supply/1KHZ, ≤1% degree of distortion)  6-7.5V
 (+24V power supply/1KHZ, ≤1% degree of distortion)  5-6V
 Protection  1.AC220V/ 1A; 2.DC+24V/2A (Only for M-1116D)
 Dielectric strength test  Between poles of power supply and input/output terminal  4200 VDC
 Between poles of power supply and metal shell  2200 VDC
 Display screen  5" LCD touch screen
 Power Requirement  AC220V/50Hz
 Net weight (Kg)  8.0
 Gross weight (Kg)  9.5
 Product dimension (mm)  483×88×350 (LxHxD)
