Product ID: L-556T/L-656T/L-856T
Short Description:

Rated power: 20W/30W/40W
Line input: 100V
Woofer speaker driver: 5" or 6" or 8" Paper, silk tweeter

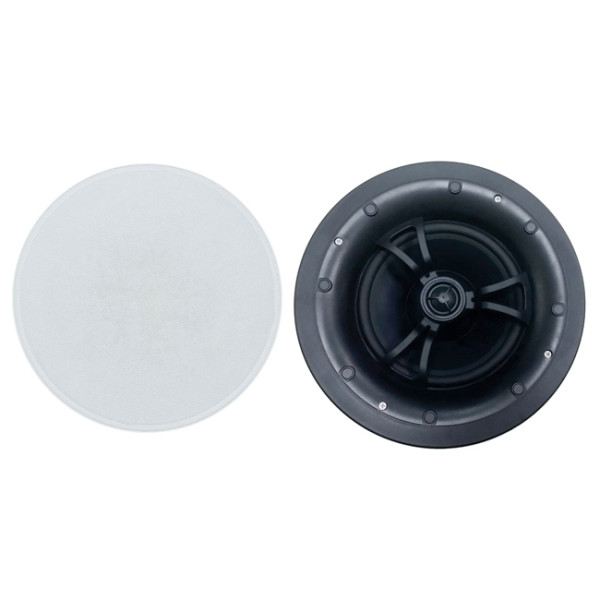

Bezel-less magnetic grille

Bezel-less magnetic grille for easy and secure attachment.

This series indoor ceiling speaker with 5", 6" or 8" paper material woofer speaker driver (rubber edge) and 0.75" or 1" silk tweeter, 100V line input.

Power taps:
L-556T: 5/10/20W (5"+0.75")
L-656T: 7.5/15/30W (6"+0.75")
L-856T: 10/20/40W (8"+1")

High-class ABS material.

Suitable for all kinds of public address system background music system usage.

 Model  L-556T  L-656T  L-856T
 Rated power  20W  30W  40W
 Power taps  5/10/20W  7.5/15/30W  10/20/40W
 Line input  100V
 Sensitivity (1m,1W)  88±3dB  90±3dB
 Frequency response  100-20KHz  60-20KHz  50-20KHz
 Woofer speaker driver  5" Paper  6" Paper  8" Paper
 Tweeter speaker driver  3/4" silk  1" silk
 Product dimension (mm)  Φ203x89  Φ237x98  Φ297x127
 Hole for mounting (mm)  Φ175  Φ210  Φ260
 Frame material  ABS
 Grille material  Powder coated Iron mesh
 Color  White (RAL9016)
 Product net weight (Kg)  1.48  1.85  2.83
 Gross weight  15Kg/8pcs  14Kg/6pcs  16.7Kg/4pcs
 Packing dimension (Kg)  54x47x31  61x42x35  75x38x40
