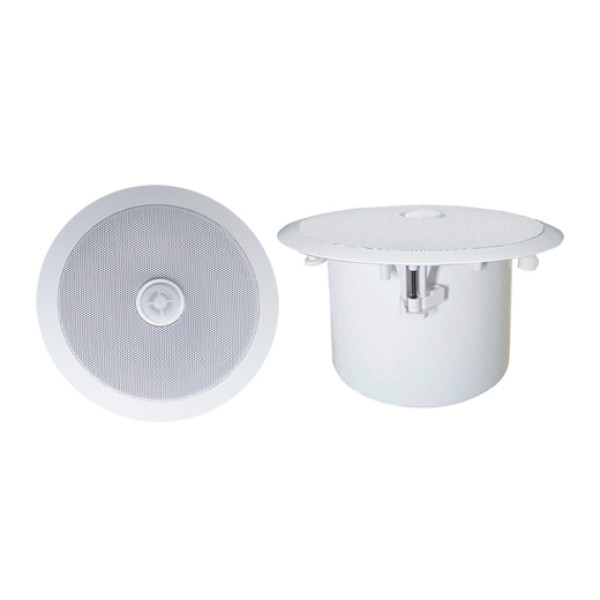

L-507THS/L-607THS/L-807THS 5"/6"/8" Ceiling Speaker with 1/2" Mylar Rotatable Tweeter, Iron Back Cover and Power Taps

Product ID: L-507THS/L-607THS/L-807THS
Short Description:

Rated power: 20W/30W/40W
Line input: 70V/100V/8Ω
Woofer speaker driver: 5" or 6" or 8" PP, ½" Mylar rotatable tweeter

Manual Book Download:
- L-507THS_L-607THS_L-807THS.pdf

ABS ceiling speaker with 5"/6"/8" PP woofer speaker driver (foam edge) and 1/2" Mylar rotatable tweeter, with transformer and power taps.

 Model  L-507THS  L-607THS  L-807THS
 Rated power  20W  30W  40W
 Power taps  2.5/5/10/20W  3.8/7.5/15/30W  5/10/20/40W
 Line input  70V/100V/8Ω
 Sensitivity (1m,1W)  87±3dB  86±3dB  87±3dB
 Frequency response  100-20KHz  90-20KHz  50-20KHz
 S.P.L.  -  -  -
 Woofer speaker driver  5" PP  6" PP (foam edge)  8" PP (foam edge)
 Tweeter speaker driver  1/2" Mylar (Rotatable)
 Product dimension (mm)  Φ203x150  Φ230x150  Φ270x170
 Hole for mounting (mm)  Φ170  Φ200  Φ240
 Frame material  ABS
 Grille material  Powder coated Iron mesh
 Color  White (RAL9016)
 Product net weight (Kg)  1.8  2.3  3.1
 Gross weight  18.4Kg/8pcs  21Kg/8pcs  16Kg/4pcs
 Packing dimension (cm)  54x50x42  59x55x43  64x34x49
