L-507T/L-607T/L-807T 5"/6"/8" Ceiling Speaker with 1/2" Mylar Rotatable Tweeter
Product ID:
L-507T/L-607T/L-807T
Short Description:
Rated power: 20W/30W/40W
Line input: 100V
Woofer speaker driver: 5" or 6" or 8" PP, ½" Mylar rotatable tweeter

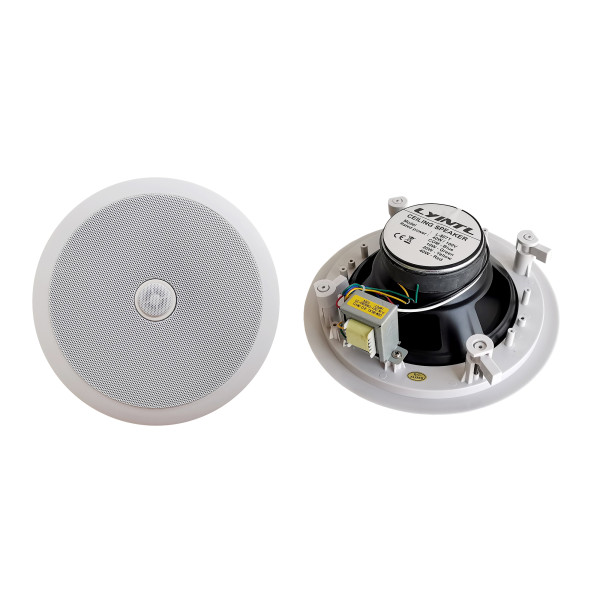

ABS ceiling speaker with 5"/6"/8" PP woofer speaker driver (foam edge) and 1/2" Mylar rotatable tweeter, 100V transformer.
| Model | L-507T | L-607T | L-807T |
| Rated power | 20W | 30W | 40W |
| Power taps | 5/10/20W | 7.5/15/30W | 10/20/40W |
| Line input voltage | 100V | ||
| Sensitivity (1m,1W) | 87±3dB | ||
| Frequency response | 100-20KHz | 90-20KHz | 50-20KHz |
| S.P.L. | 96dB at 100V/10W | 99dB at 100V/15W | 101dB at 100V/20W |
| Woofer speaker driver | 5" PP | 6" PP | 8" PP |
| Tweeter speaker driver | 1/2" Mylar (Rotatable) | ||
| Product dimension (mm) | Φ203x80 | Φ230x90 | Φ270x105 |
| Hole for mounting (mm) | Φ170 | Φ200 | Φ240 |
| Frame material | ABS | ||
| Grille material | Powder coated Iron mesh | ||
| Color | White (RAL9016) | ||
| Product net weight (Kg) | 1.4 | 1.6 | 2.2 |
| Gross weight | 14.7Kg/8pcs | 16.7Kg/8pcs | 16.7Kg/6pcs |
| Packing dimension (cm) | 50x44x29 | 54x47x31 | 61x42x35 |
