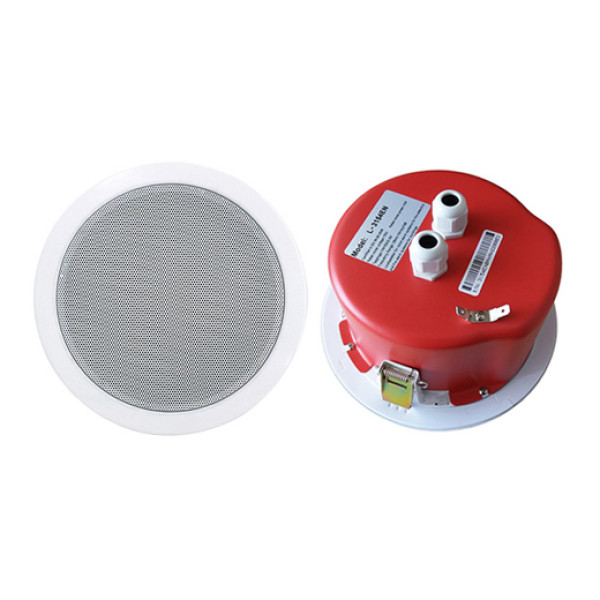

Product ID: L-3154EN
Short Description:

10W rated power
6.5" full range speaker
100V line input

Manual Book Download:
- L-3154EN.pdf

Special designed metal fireproof ceiling speaker for fire alarm system, voice evacation system and emergency sytem, comply with EN54-24 standard, with fire dome for protecting the wire connection.

◆ Comply with EN54-24 requirements
◆ With fire dome to protect wire connection
◆ Fireproof plastic wire joint and ceramic terminal
◆ High-class steel and form by stamping
◆ Aluminum grille, stainless and durable
◆ Clip type flush mount design for easy installation
◆ Equipped with steel hanging line, double ensure
 Model  L-3154EN
 Rated/Max power  10W
 Power taps  2.5/5/10W
 Line voltage  100V
 Sensitivity (1m,1W)  90dB
 Max SPL (1M)  100dB
 Frequency response  180-16KHz
 Dimension (mm)  Φ200x100
 Hole for mounting (mm)   Φ168
 Speaker driver unit  full range 6.5"
 Material  IRON
 Weight (Kg)  1.04
 Gross weight (Kg)  13.5Kg/12pcs
 Packing dimension (cm)  49x42x50
