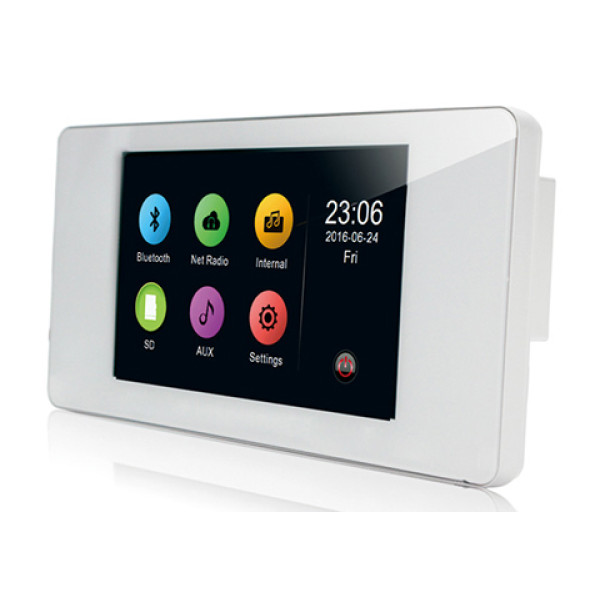

5" TFT full touch screen
Build-in Hi-Fi digital amplifier
2x20W/8Ω power output
This unique appearance designed terminal player pad enabls you to play the audio signal from main control host and local audio sources.
◆ 5.0" TFT full touch screen
◆ 5 media sources: bluetooth, build-in music, SD card, internet radio and AUX
◆ Use CSR bluetooth4.0, support apt-X algorithm
◆ Build-in Hi-Fi digital amplifier, offering 2.1 channel output connected to active subwoofer
◆ Build-in DSP effect, offering 5 effect options: normal, pop, classic, jazz and rock
◆ Indipendent timer with power off memory function
◆ RS485 interface for connection to intelligent home central control host or other smart home devices
◆ RJ45 network interface, connect to LAN and wireless router, with wireless router the player can be controlled by iPhone, iPad, iPod or Android smart phone
◆ Infrared remote control
◆ Have independent timing function and memory
◆ Support multiple audio formats: MP3, WMA, WAV, APE, FLAC, ACC, OGG
| Item | Parameter |
| Power supply | AC100~240V, 50/60Hz, 1A |
| Audio source | Bluetooth, build-in music, SD card, internet radio, AUX |
| AUX input impedance | >10KΩ |
| Rated output power | 2x20W/8Ω |
| Frequency response | 20Hz-20KHz |
| T.H.D | ≤0.2% @ 1KHz |
| S/N | ≥81dB |
| Bluetooth transmission distance | ≤10m |
| Power consumption | ≤45W |
| Net weight | 0.38Kg |
| Gross weight | 0.67Kg |
| Product dimension (LxWxD) | 172x86x50mm |
| Packing dimension (LxWxD) | 220x180x135mm |
![]()
