Rated power: 200W
Line input: 100V or 8Ω for option
Speaker: 10" bass, 1.8" treble
ABS enclosure, Iron mesh
Outdoor IP56 waterproof

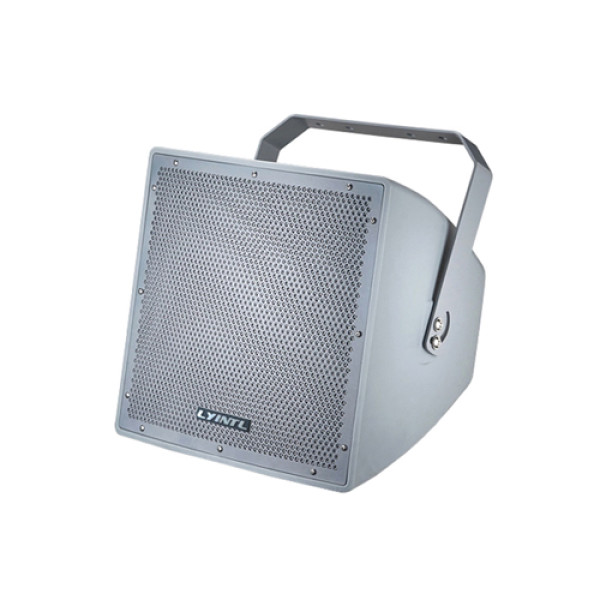

Elevate your outdoor audio experience with our H-L Series 10" 200W 100V 2-Way Compact Full Range All Weather Resistant Coaxial PA Stadium Horn Speaker H-L1020T (H-L1020: 200W@8Ω).
This high-performance speaker delivers exceptional sound clarity and projection, perfect for large venues, stadiums and other indoor & outdoor environments.
The speaker uses high-power remote horn, two frequency division design, using professional high bass unit, which has efficient sound transmission, strong penetration, and high speed restoration characteristics.
Key Features:
This series is engineered for robust performance and reliability, making it an ideal choice for any large-scale public address system, such as sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and other outdoor/indoor venue types.
Upgrade your audio experience with our all-weather PA stadium horn speakers and ensure your message is heard loud and clear, no matter the environment.
Model | H-L1020 | H-L1020T |
Rated power | 200W | 200W |
Max power | 400W | 400W |
Line input | 8Ω | 100V |
Sensitivity (1m,1W) | 98dB | |
Max SPL | 120dB | |
Frequency response | 70Hz-20KHz | |
LF driver | 10", 51mm voice coil, 140mm magnetic | |
HF driver | 1.8", 44mm voice coil, 120mm magnetic | |
Directivity (HxV) | 40°x60° | |
Frame material | ABS plastic | |
Grille material | Iron | |
Bracket material | Iron | |
Input connectors | 2 x Neutrik speakon NL4 | |
Waterproof | IP56 | |
Color | Black/White/Grey | |
Dimension | 360 x 360 x 370 mm | |
Net weight (Kg) | 14 | 15.5 |
Gross weight (Kg) | - | - |
Packing dimension | - |
