Products

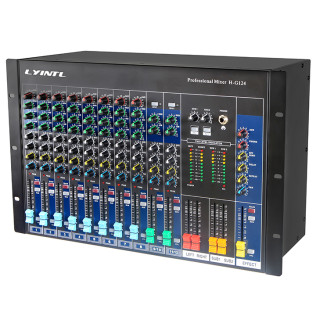

Product ID: H-G124
Short Description:

8 CH Mono & 8 CH Mic input
2 channel stereo input

Manual Book Download:
- H-F08_H-F12_H-F16_H-G124.pdf

◆ 8 channels Mono and 8 channels MIC input, 2 channel stereo input

◆ High-performance microphone pre-amplifiers with switchable phantom power

◆ 3-band channel EQ and high-pass filters

◆ Build-in channel compressors

◆ Smooth 60-millimeter faders & Illuminated channel on switches

◆ Bright meters for visual level monitoring



 Model  H-G124
 Max output level  19dBM(1Hz, THD=0.5%)
 Phones output  40mW(1Hz, THD=0.5%, 200Ω)
 Input type  XLRx4, RCAx4
 Frequency response  20Hz-20KHz
 Residual noise SNR  -75dB
 S/N  71dB
 T.H.D.  ≤0.05% (1KHz, 0.775V)
 EQ  LOW: 80Hz±15dB
 MID: 2.5KHz±15dB
 HIGH: 12KHz±15dB
 Gain control  Mono: -55dB~0dB
 Sereo: -10dB~0dB
 Power supply  AC220V 50~60Hz
 Power consumption  35W
 Dimension (LxWxH) (mm)   437x200x300
 Net weight (Kg)  6.0
