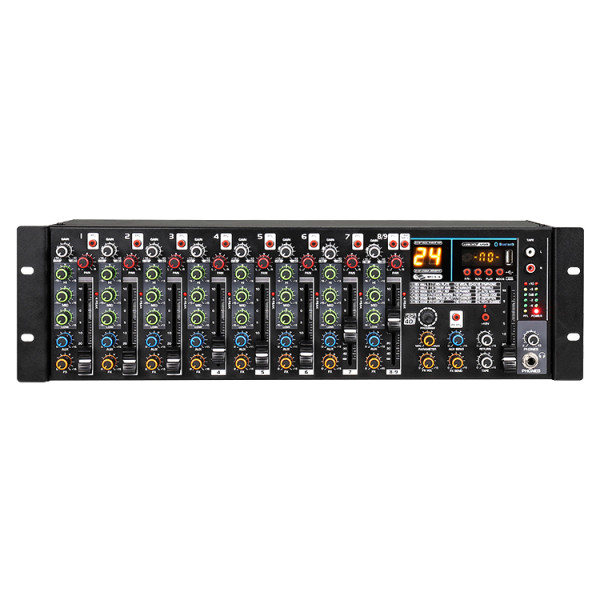

H-G09 9-Channel Rack Mount Audio Mixer with DSP & Bluetooth
Product ID:
H-G09
Short Description:
24-bit DSP effects built-in
3-band EQ per mono channel
8 mic/line + 1 stereo input
USB & Bluetooth streaming
Rackmount installation design
The LYINTL H-G09 9 channel rack mount audio mixer is engineered for commercial audio installations, PA systems, and professional sound integration projects.
Designed for system integrators, distributors, and contractors, this mixer delivers a balance of performance, flexibility, and cost efficiency, making it a reliable choice for medium-scale audio systems.

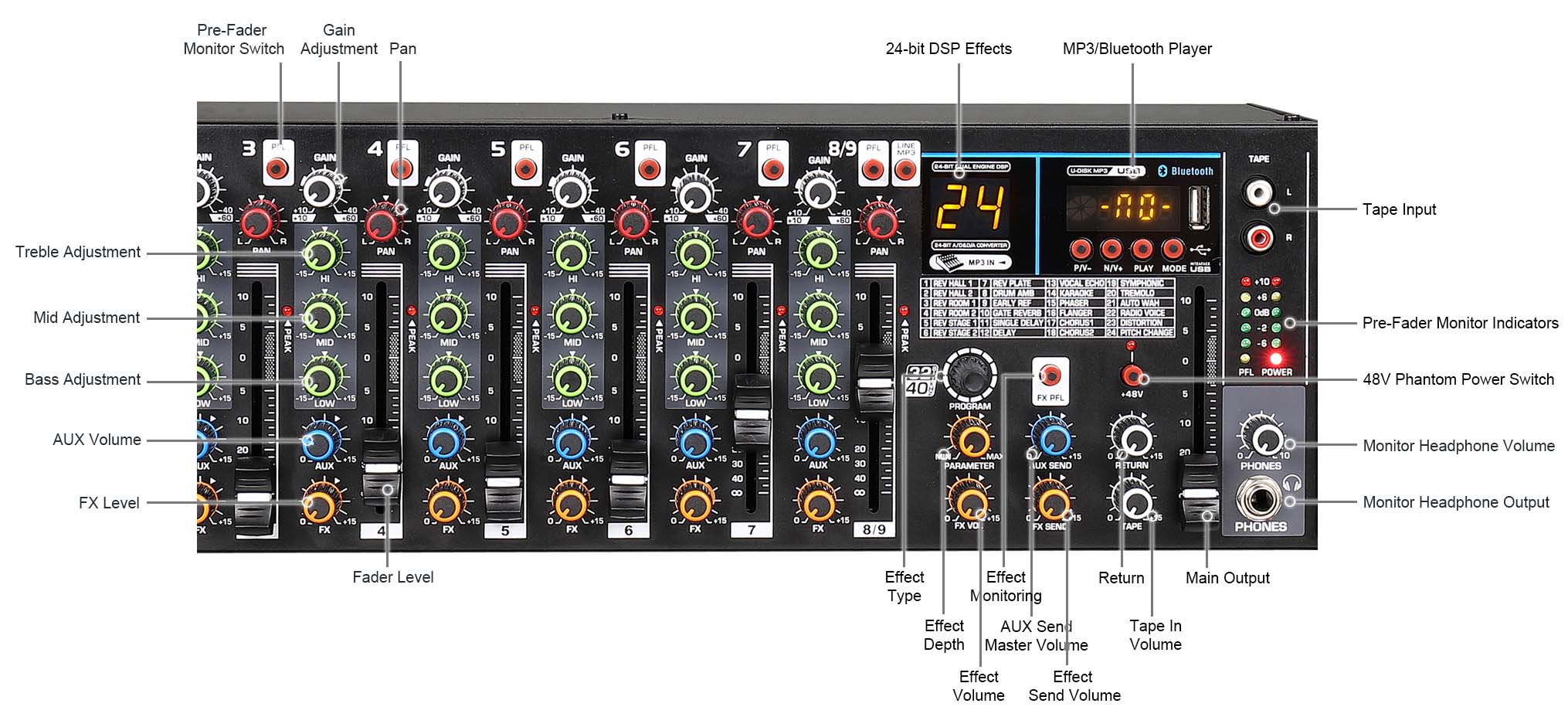

Key Features
Professional 9 Channel Audio Mixer
Supports multiple audio sources, making it ideal for multi-zone PA systems and commercial environments.
Rack Mount Mixer for Easy Installation
Standard 19-inch rack mount design, suitable for equipment racks in fixed installations.
Built-in DSP Effects Processor
Integrated 24-bit DSP effects mixer, reducing the need for external processors.
Bluetooth Audio Streaming
Wireless audio input for modern commercial audio applications.

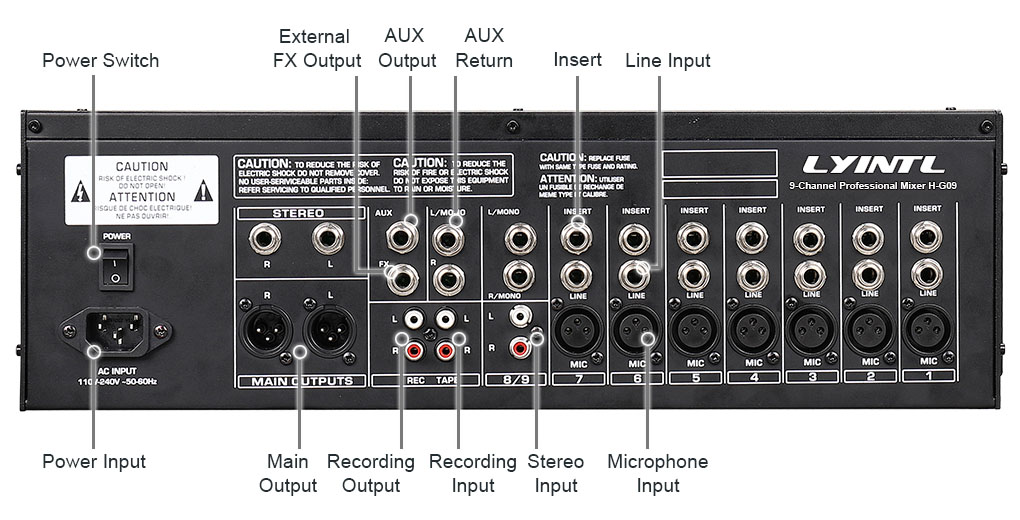

Multiple Inputs & Outputs
- 8 microphone inputs
- 7 line inputs
- Stereo input
- AUX outputs for expansion
Low Noise & High Fidelity Performance
Designed for clear speech and background music systems.
Application Scenarios
This rack mount audio mixer is widely used in:
- Commercial PA systems
- Conference room audio systems
- Retail store background music systems
- Restaurant and hospitality audio setups
- Church and worship audio systems
- Education and training facilities
| Parameter | Specification |
| Model | H-G09 |
| Type | Rack Mount Audio Mixer |
| Channels | 9 Channels |
| Microphone Inputs | 8 (7 XLR) |
| Line Inputs | 7 Mono |
| Stereo Inputs | 1 Group |
| Outputs | Main Stereo ×1, AUX ×2, Headphone ×1 |
| DSP Effects | 24-bit DSP Multi-Effects |
| Phantom Power | +48V (Switchable) |
| Frequency Response | 20Hz – 20kHz (±3dB) |
| THD | <0.003% (A-weighted) |
| EIN (Mic) | -119dB (A-weighted) |
| CMRR | 60dB |
| Gain (Mic) | 0 to 48dB |
| Gain (Line Mono) | -33 to +15dB |
| Gain (Stereo) | -8 to +6dB |
| Crosstalk (Main Mix) | -87dBu |
| Crosstalk (Channel) | -85dBu |
| Max Output Level | +20dBu |
| High-pass Filter | 75Hz (18dB/oct) |
| EQ (Mono Channel) | High ±15dB@12kHz Mid ±12dB@2500Hz Low ±15dB@80Hz |
| Power Supply | AC 110–220V |
| Power Consumption | ≤23W |
| Dimensions | 480 × 240 × 140 mm |
| Weight | 4 kg |
