Product ID: H-8700T
Short Description:

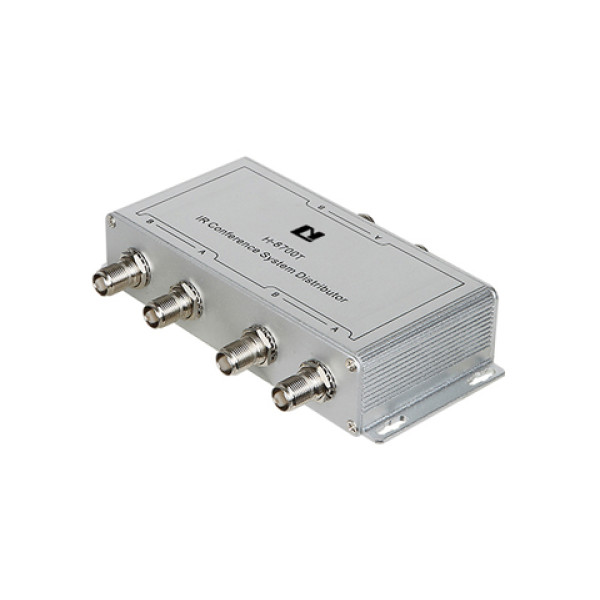

2 input, 4 output signal distributor

◆ Adopt impedance balance branch connector (2 input, 4 output)

◆ Low insertion loss computation

◆ Perfect plating surface treatment with excellent shielded function

 Item  Parameter
 Carrier Frequency Band  4MHz-8MHz
 Insertion Loss Computation  <1dbM
 Input/output Impedance  50Ω
 Input Terminal  2
 Output Terminal  4
 Terminal Type  TNC
 Dimension (LxWxH) (mm)  80x65x20
 Power Supply  DC 24V/2A
 Net Weight (kg)  0.67
