Receiving range around 150°
Operating distance > 12M

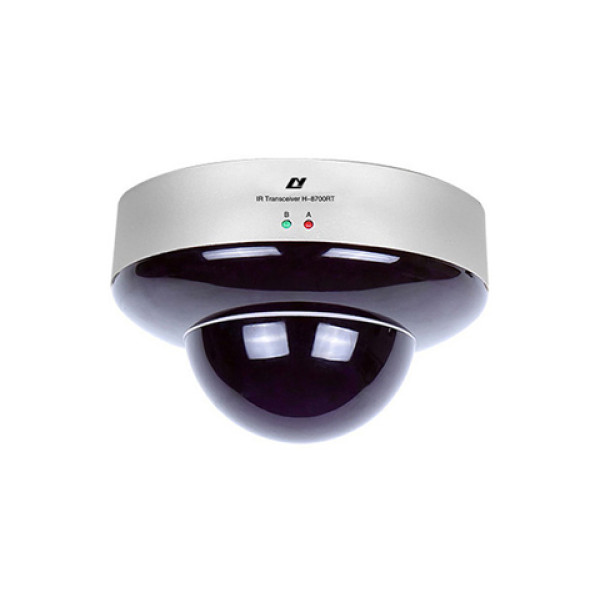

This IR wireless conference system transceiver adopts mounting hook for easy installation, can be installed on the wall or ceiling (option).
◆ Adop mounting hook installation, easy to install
◆ Wide-angle, receiving range is approximately 150 degrees
◆ Signal gain more than 35dBM
◆ Adopt low consumption electro circuit
Item | Parameter |
Carrier Frequency Band | 4MHz-8MHz |
Power Supply | DC 24V from main unit |
Rated Current | 380mA |
Receiving Sensitivity | -100dBM |
Gain | 40dBM |
Output Impedance | 50Ω |
Infrared Operating Distance | >12M |
Terminal Type | TNC |
Dimension (mm) | Φ145x100 |
Net Weight (Kg) | 1.71 |
