Product ID: H-8700M
Short Description:

Support IR wireless discuss
Support video track with processor
Support up to 127 mic in one system

Manual Book Download:
- H-8700.pdf

System Main Features

◆ Infrared transmission technology guarantees privacy
◆ Perfect sound quality as CD from the microphone
◆ IR communication system eliminates the need of connection the conference units. Installation can be done quick and smart without cumbersome arrangements
◆ Fullyfunctions (Discuss & Video tracking), support FIFO (1/2/3), Limit (1/2/3) and chairman only mode, microphones in one system up to 127 units
◆ Microphones can be operated on either their build-in rechargeable LI-Polymer batteries or AC power supply, battery lie approx. 6 hours during speech and approx. 30 hours when standby
◆ Microphone OLED can display system and conference information
◆ Excellent immunity to RF interference from mobile phones and RF devices

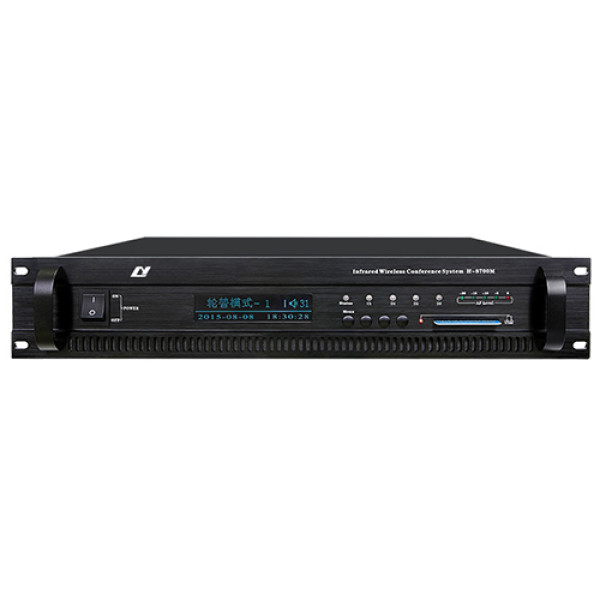

H-8700M Infrared Conference System Main Unit

◆ Support mode: Limit (1/2/3), FIFO(1/2/3), chairman only
◆ Support video camera auto-track with video processor H-8008
◆ 160x32 dot matrix LCD display system information
◆ Two group audio output interface to support external audio system
◆ Installation: 19-inch frame
◆ Designed accordance to UL and CE standards
◆ If main unit turn off power, microphone will shut off the power within 60 seconds

 Item  Parameter
 Transmission Method  Wireless infrared
 Channels  4 audio + 1 data
 Carrier Frequency Band  4MHz-8MHz
 Modulation Method  FM/FSK
 Receiving Sensitivity  -100dBM
 Output Level  0dBV/+6dBV
 Infrared Operating Distance  >10M
 Frequency Response  100Hz-12KHz
 S/N Ratio  >82dB
 T.H.D.  <0.5%
 Communication Rate  100KBPS
 Power Supply  AC110V~220V / 50Hz-60Hz
 Consumption Rating  10W
 Operating Temperature Range   0-40 degree
 Dimension (LxWxH) (mm)  483x377x89
 Net Weight (Kg)  8.0
