H-8510M Infrared Wireless Conference System Main Unit
Main Features
◆ Infrared transmission technology guarantees privacy
◆ Perfect sound quality as CD from the microphone
◆ IR communication system eliminates the need of connecting the conference units
◆ Fully functions (Discuss, video auto tracking & voting), support FIFO(1,2,3),Limit(1/2/3) and chairman only mode, microphones in one system up to 128 units
◆ Microphone can be operated on either their built-in rechargeable lithium-in batteries or AC power supply. Battery life approx. 8 hours during speech and approx.30 hours when standby
◆ Microphone LCD can display system and conference information
◆ Excellent immunity to RF interference from mobile phones and RF devices

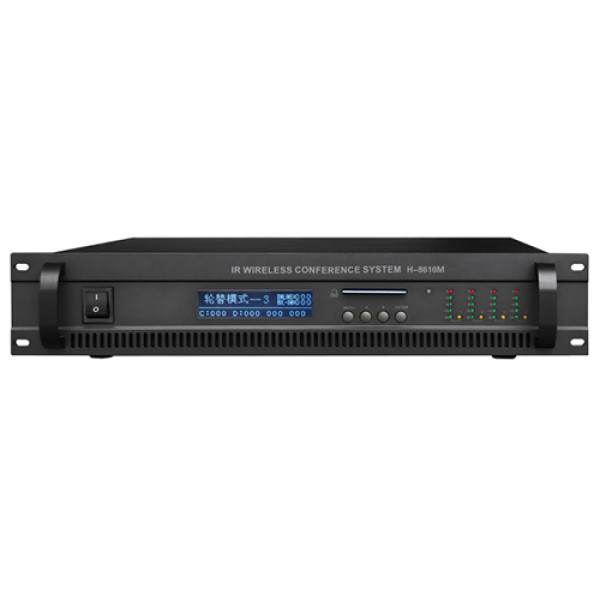

H-8510M/H-8610M Infrared Conference System Main Unit
◆ Support mode: Limit (1,2,3), FIFO(1,2,3), chairman only
◆ Build-in video processor and voting processor to support video camera auto-track and voting function
◆ 160x32 dot matrix LCD display system information
◆ Two group audio output interface to support external audio system
◆ Installation: 19-inch frame
◆ Designed accordance to UL and CE standards
◆ If main unit turn off power, microphone will shut off the power within 60 seconds
Description | Item | Parameter |
Audio channel | Transmission Method | Wireless infrared |
Audio Channel | 4 | |
Carrier Frequency Band | 6MHz-8MHz | |
Modulation Method | FM | |
Receiving Sensitivity | -85dBM | |
Output Level | -10dB | |
Infrared Operating Distance | >10M | |
Frenquency Response | 100Hz-10KHz | |
S/N Ratio | >70dB | |
T.H.D. | <0.5% | |
Data control channel | Transmission Method | Wireless |
Date Channel | 5 | |
Frenquency Range | 915MHz-925MHz | |
Modulation Method | FSK | |
Receiving Sensitivity | -80dBM | |
Transmission Consumption | 10dBM | |
Communication Rate | 100KBPS | |
Signal Convering Range | Radius 100M | |
System | Power Supply | AC 110V~240V / 50Hz-60Hz |
Consumption Rating | 10W | |
Operating Temperature Range | 0-40 degree | |
Dimension (LxWxH) (mm) | 484x377x85 | |
Net Weight (kg) | 6.81 |
