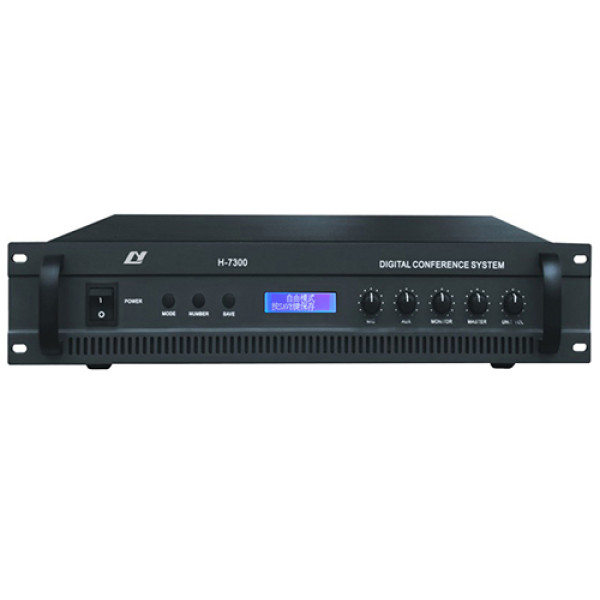

H-7300 Full Function Digital Conference System
◆ Designed accordance to ISO and IEC914 standards
◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 units microphone with extension power unit
◆ Equipped with four groups of 8P-DIN interface for system connecting
◆ With the port for telephone interface input, telephone meeting is available with telephone coincidence
◆ Built-in monitor loudspeaker
◆ Main unit has following features when work without computer
1) LCD display the working mode on the front panel
2) Support many conference work mode: free, FIFO(1-9 microphone unit), limit(1-9 microphone unit)
◆ Main unit has following features when work with computer and other devices:
1) Manage the meeting with software, support double screen display
2) Voting function (yes,no abstain)
3) Electing function (single-ballot and multiple-ballot)
4) Audience response ( 100, 75, 50, 25, 0)
5) Video camera auto-track function
6) System can support discuss model: free mode, FIFO mode(1-9 microphone unit), Limit mode (1-9 microphone unit)
◆ Connection:
1) 1 pcs 13m main cable with 8 PIN plugs
2) 8 PIN socket for system connection
Item | Parameter |
Power Supply | AC110V/240V 50Hz/60Hz |
Consumption Rating | 450W |
T.H.D. | <0.05% |
S/N | >75dB |
Frequency Response | 100Hz-18KHz |
Color | Black |
Net Weight | 11.5Kg |
Audio Input | RCAx1, Φ6.35x1 |
Audio Output | RCAx2, XLRx1 |
Output Impedance | 47KΩ |
Video Input | 8 |
Video Output | 2 |
Control Type | RS-232 |
System Connection | 8-PIN DINx4 |
Dimension (mm) | 480x360x85 |
Installation | 2U rack 19 inch frame |
