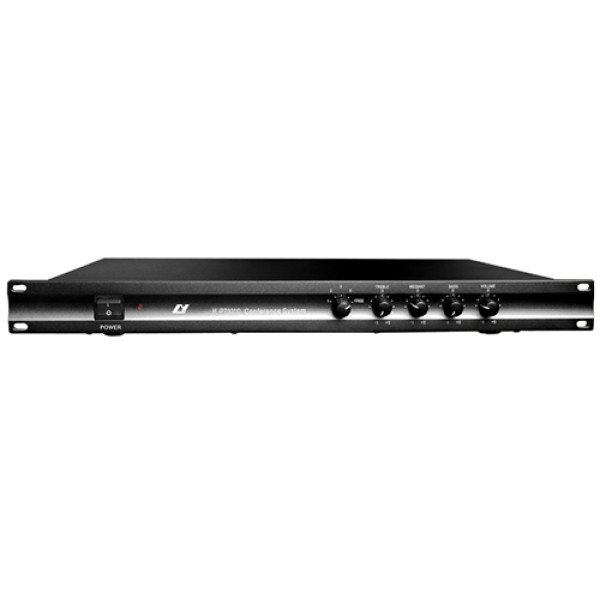

H-7000D Economical Conference System Main Unit

Product ID: H-7000D
Short Description:

Support discuss
Support up to 250 units microphone with power extension unit

Manual Book Download:
- H-7000D_H-3800c_H-3800d.pdf

◆ Designed accordance to ISO and IEC914 standards

◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 units microphone with extension power unit

◆ Equipped with four groups of 8 P-DIN interface for system connecting

◆ With the port for telephone interface input, telephone meeting is available with telephone coincidence

◆ System support 1/2/3/5/Free mode

◆ Support video camera auto-track with video processor H-8008

◆ Support voting with voting processor H-8000

◆ Connection:
1pc 13m main cable with 8 PIN plug
8 PIN socket for system connection

 Item  Parameter
 Power Supply  AC110V/240V 50Hz/60Hz
 Power Consumption  115W
 T.H.D.  <0.05%
 S/N  >75dB
 Frequency Response  100Hz-18KHz
 Color  Black
 Net Weight (kg)  5.0
 Audio Output  RCAx2, XLRx1
 Data Communication  RJ45x1
 System Connection  8-PIN DINx4
 Dimension (mm)  480x340x45
 Installation  19 inch frame
