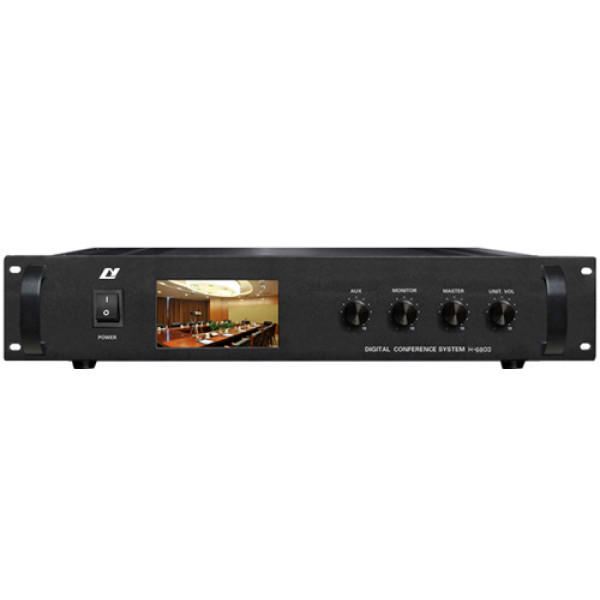

H-6800 Touch Screen Digital Video Conference System
◆ Designed accordance to ISO and IEC914 standards
◆ Power consumption of main unit 450W, each unit can support 50 units meeting microphone (1 chairman microphone & 49 delegate microphone)
◆ Combing video and audio signal in one cable
◆ This system can work with computer or without computer
◆ Main unit and microphone can display videos from camera or external video devices
◆ Main unit has following features:
1) Manage the meeting with software, support double screen display
2) Voting function (yes,no abstain)
3) Electing function (single-ballot and multiple-ballot)
4) Mode score: audience response (100, 75, 50, 25, 0)
5) Video camera auto-track function
6) Chairman can set following discuss work mode: free mode, FIFO mode(1-9 microphone unit), Limit mode (1-9 microphone unit),etc.
◆ TFT LCD display panel with touch control function, touch screen on main unit and microphone
◆ Equipped with 2 group video input interface
◆ Five groups of terminal interconnection interface for microphone connection
◆ Build-in RS-232 interface for PC connection
◆ Build-in video processor, support video camera auto-track function
◆ Build-in speaker on main unit and microphone
◆ Connection ports:
- 1 aux input ( RCA)
- 1 line output(RCA )
- 1 rec output (RCA )
- 1 master output ( XLR )
- 2 DVD video inputs ( RCA )
- 8 cameras ( or domes ) inputs ( RCA )
- 2 auto-tracking cameras control
- 2 video output ( BNC )
- 5 mic connectors
- 1 computer control connector ( RS-232 )
Item | Parameter |
Power Supply | AC110V/240V 50Hz/60Hz |
Consumption Rating | 400W |
T.H.D. | <0.05% |
S/N | >75dB |
Frequency Response | 100Hz-18KHz |
Color | Black |
Audio Input | RCAx1 |
Audio Output | RCAx2, XLRx1 |
Display | 4.3 inch 24 bit TFT LCD touch screen |
Output Impedance | 47KΩ |
Video Input | BNCx4 RCAx2 75Ω |
Video Output | BNCx1 |
Control Type | RS-232 |
System Connection | 8-PIN DINx5 |
Dimension (mm) | 488x324x84 |
Net Weight (Kg) | 10.3 |
Installation | 19 inch frame |
