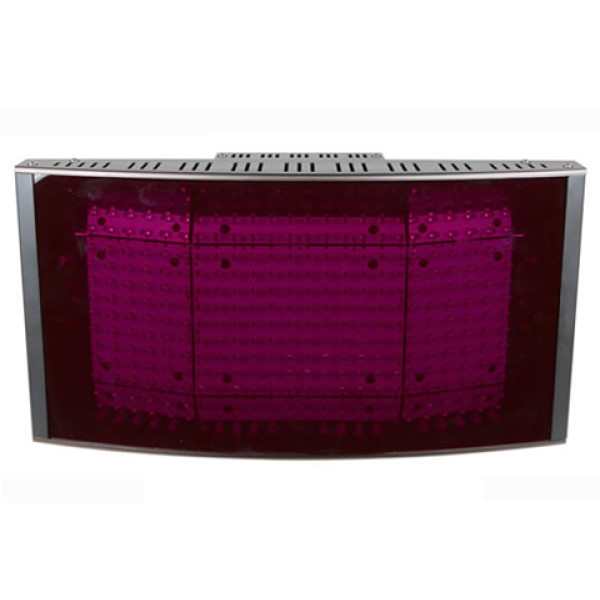

H-6700S Digital IR Radiator
Product ID:
H-6700S
Short Description:
Radiates & distributes up to 32 channels of audio signal
◆ Radiates & distributes up to 32 channels of audio signal
◆ Transmission distance can be more than 30 meters (25W)
◆ Auto switched on/off by carrier signals from transmitter unit
◆ Convection cooled for noiseless, reliable operation
◆ Mounted on ceiling, wall, floor stand or optional tripod
◆ Easily daisy-chained together to expand coverage
◆ Delay compensation switch two compensate for difference in cable lengths between transmitter and radiators
◆ Angle of half radiator angle: ±22°
| Item | Parameter |
| HF input | Nominal 1 Vpp, minimum 10mVpp |
| Angle of half intensity | ±22° |
| Total optical peak intensity | 24 W/sr |
| Power consumption | Operating: 30W; Standby:25 W |
| Transmission distance | <30 meters/16 CH |
| Number of IREDs | 312 |
| Power supply | AC110V-220V ~ 50Hz-60Hz |
| Dimension (mm) | 445×235×113 |
| Operating temperature range | 0-40° |
| N.W (Kg) | 4.2 |
| Mounting | Standard: Bracket, Option: tripod |
