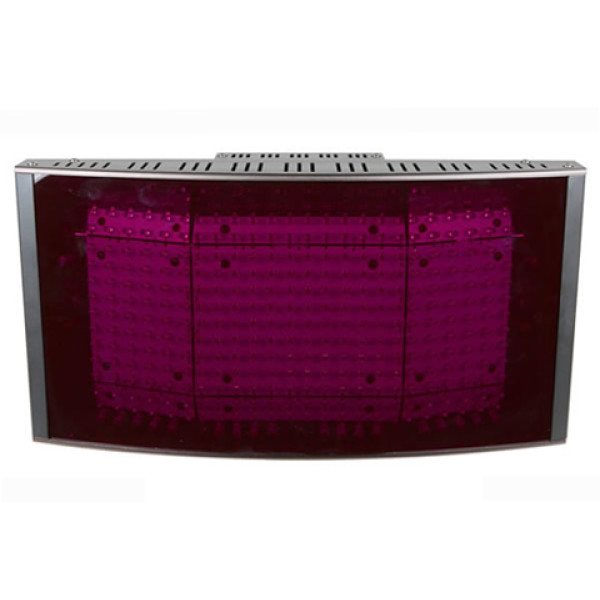

H-6300S IR Radiator

Product ID: H-6300S
Short Description:

Radiates & distributes up to 12 channels of audio signal

◆ Radiates & distributes up to 12 channels of audio signal
◆ Transmission distance more than 30 meters (25W)
◆ Auto switched on/off by carrier signals from transmitter unit
◆ Auto gain control to ensure diodes with max. efficiency
◆ Convection cooled for noiseless, reliable operation
◆ Mounted on ceiling, wall, floor stand or optional tripod
◆ Easily daisy-chained together to expand coverage
◆ Half radiator angle: ±22°

 Item  Parameter
 Frequency Band  1.7-4.0MHz
 Total optical peak intensity  24W/sr
 Power consumption  Operation: 30W;
 Standby: 25W
 Transmission distance
 Number of IREDs  312
 Angle of Half Intensity  ±22°
 RF Output Impedance  50Ω
 Channel Separation  >70dB
 RF Output Power Level  700mV
 RF Output Impedance  50Ω
 RF Input Voltage  100-2000mV
 Power Supply  AC110V~240V/50Hz-60Hz
 Dimension (mm)  445x235x113
 Net Weight (Kg)  4.2
