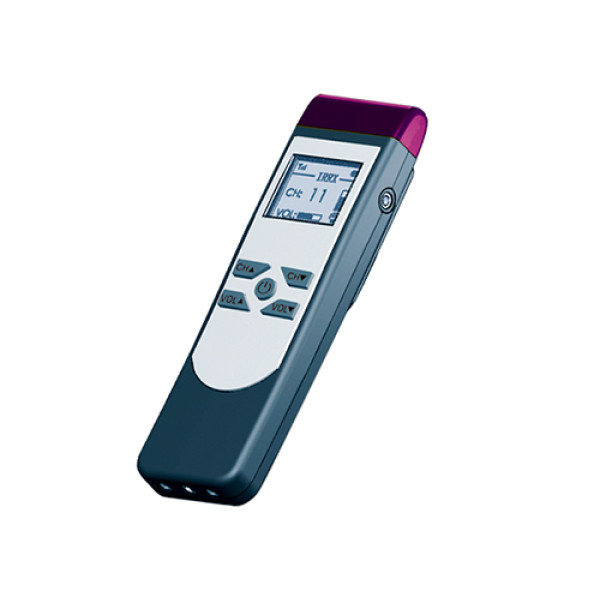

H-6300D IR Receiver
Product ID:
H-6300D
Short Description:
Accommodates up to 12 different languages
With channel selector and headphone connector
Volume, channel, signal and power level display
◆ Packet size wireless handheld unit
◆ Accommodates up to 12 different language
◆ With channel selector and headphone connector
◆ Power on/off switch and volume level control
◆ Powered by rechargeable batteries
◆ Aluminum carrying cases provided for recivers
◆ Volume, channel, signal and battery power level display on LCD
| Item | Parameter |
| Modulation mode | FM |
| Frequency synthesis | Digital PLL |
| Frequency band | 1.7-4.0MHz |
| Receiving sensitivity | -101dBM |
| Angle of half sensitivity | ±50° |
| Headphone output level at 2.4V | 450mVrms (working at MAX volume, 32Ω headphone) |
| Headphone output frequency range | 20Hz-10KHz |
| Headphone output impedance | 32Ω |
| MAX S/N ratio | 78dB(A) |
| Operating voltage | 3.6V, norminal 3V |
| Power consumption at 3V (battery voltage) | 60mW (working at MAX volume, 32Ω headphone) |
| Power consumption (standby) | 60mW |
| Dimension (mm) | 155x47x24 |
| Net Weight (Kg) | 0.1Kg (without battery) |
