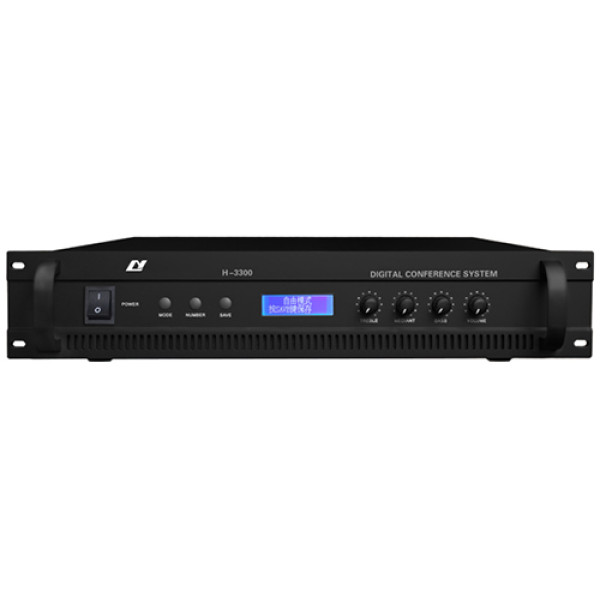

Product ID: H-3300
Short Description:

Support discuss
Support up to 250 units microphone with power extension unit

Manual Book Download:
- H-3300_H-3100C_H-3100D_ H-8EX.pdf

◆ Designed accordance to ISO and IEC914 standards

◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 units microphone with extension power unit

◆ Equipped with four groups of 8 P-DIN interface for system connecting

◆ With the port for telephone interface input, telephone meeting is available with telephone coincidence

◆ System support discuss mode: Free mode, FIFO mode (1-9 microphone unit), Limit mode (1-9 microphone unit)

◆ System working mode can display on LCD

◆ Support video camera auto-track with video processor H-8008

◆ Support voting with voting processor H-8000

◆ Connection:
1pc 13m main cable with 8 PIN plugs
8 PIN socket for system connection


 Item  Parameter
 Power Supply  AC110V/240V 50Hz/60Hz
 Consumption Rating  115W
 T.H.D.  <0.05%
 S/N  >75dB
 Frequency Response  100Hz-18KHz
 Color  Black
 Net Weight (Kg)  8.12
 Audio Output  RCAx2, XLRx1
 Data Communication  RJ45x1
 System Connection  8-PIN DINx4
 Dimension (mm)  480x355x88
 Installation  19 inch frame
