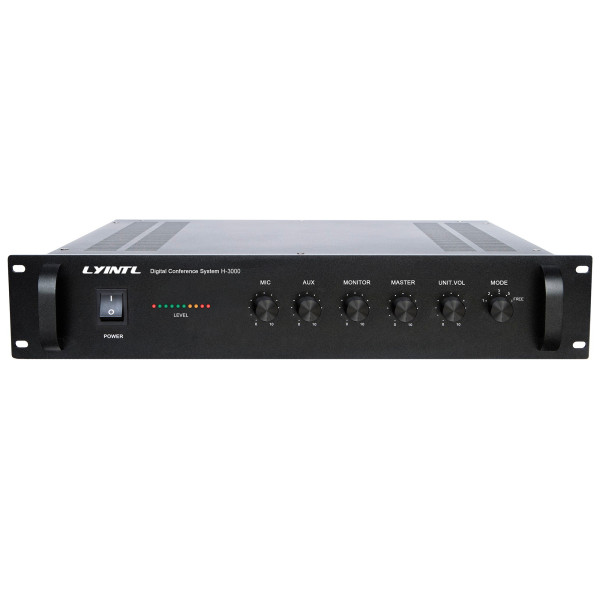

Support discuss
Support up to 200 units microphone with power extension unit
◆ Designed accordance to ISO and IEC914 standards
◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 200 units microphone with extension power unit
◆ Equipped with four groups of 8P-DIN interface for system connecting
◆ Build-in monitor loudspeaker
◆ System support 1/2/3/5/Free mode
◆ Support video camera auto-track with video processor H-8008
◆ Connection:
1pc 13m main cable with 8 PIN plug
8 PIN socket for system connection
Item | Parameter |
Power Supply | AC110V~240V / 50Hz~60Hz |
Power Consumption | 500W |
T.H.D. | <0.05% |
S/N | >70dB |
Frequency Response | 100Hz-18KHz |
Color | Black, front panel silver |
Net Weight (Kg) | 9.3 |
Audio Output | RCAx4, 6.33mmx1 |
Audio Input | Φ6.3x2 |
System Connection | 8-PIN DINx4 |
Dimension (mm) | 480x360x85 |
Installation | 19 inch frame |
