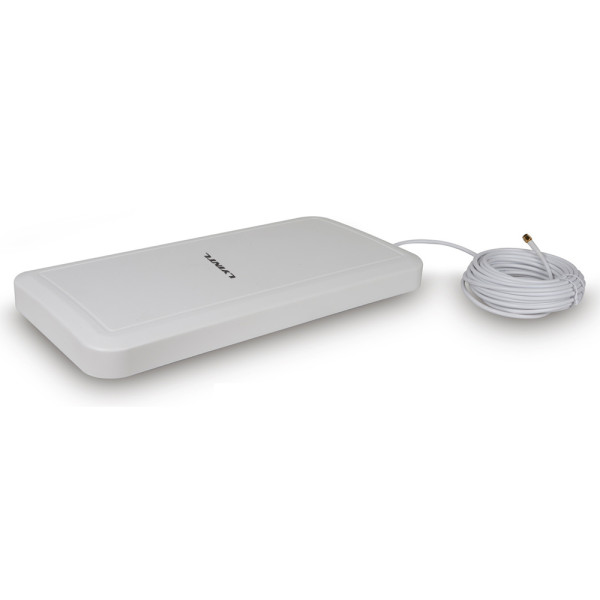

Antenna panel used for wireless transmitting 2.4G signals
This antenna need to be installed on the wall or ceiling which is unobtrusive height, facing the center of the hall (conference table).
It has the characteristics of directional receiving signal, the effective range of action is about 60 degree left and right, 30 degree up and down, and within 100 meters in front of the antenna. Try to keep all the microphone units within the scope of the antenna.
The antenna box should avoid Wi-Fi router or other devices that transmitting 2.4GHz signals.
Carrier Frequency | 2.4G (2400-2483MHz) |
Audio Channel | 4 (1 Chairman + 3 Delegate) |
Spread Spectrum | Spread Spectrum |
Transmitting Power | <20dBm |
Frequency response | 50Hz-15KHz |
Power Supply | 230V/50Hz~60Hz |
Consumption Rating | 7W |
Receiving sensitivity | -83dBM |
S/N | 95dB |
Dimensions (mm) | 483 x 377 x 88, 2 U rack 19" |
