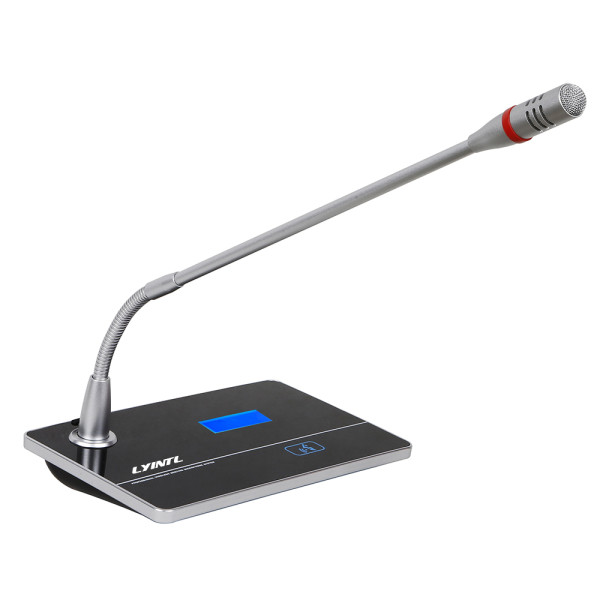

Product ID: H-2400D
Short Description:

LCD display microphone ID, battery level, microphone state

Microphone touch on/off panel

◆ Wireless & portable table moving

◆ Electric capacity type microphone, equipped with windshield cover

◆ LCD display microphone ID, battery level, microphone status, control channel, etc.

◆ Microphone will shut off the power or in standby if receiver powered off.

 Items  Parameters
 Audio channel  Transmission method  2.4G (one way)
 Audio channel  4 (1 chairman, 3 delegate)
 Carrier frequency band  2400MHz~2483MHz
 Modulation method  FM
 Maximum modulation  60KHz
 Radiant power  ≤+9dBm
 Frequency deviation  <0.002
 Frequency response  50Hz-15KHz
 S/N Ratio  >95dB
 T.H.D.  <0.8%
 Data control channel   Transmission method  2.4g (one-way)
 Data channel  16
 Frequency Range  2400MHz ~ 2483MHz
 Modulation method  FM
 Receiving sensitivity  -100dBM
 Transmission consumption  ≤6dBm
 Communication rate  100KBPS
 Frequency deviation  <0.002
 System  Power supply  DC 3.7V
 Signal covering range  Radius 60 meters
 Consumption Rating  Standby: ≤360mW
 Speaking: ≤630mW
 Operating temperature range   -10-40 degree
 Dimensions  170×58×120mm
 N.W  0.7kg
