Product ID: FS-6430/FS-6640/F-6850
Short Description:

Rated power: 30W/40W/50W
Line input: 70V/100V/8Ω
4½"/6½"/8" woofer + 1" silk soft dome
IP66 All weatherproof

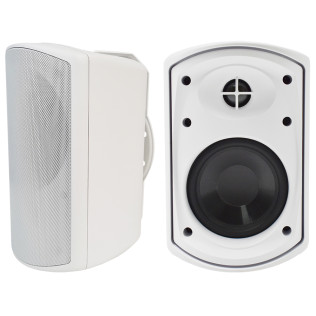

FS-6 series outdoor wall mount speakers are one of  LYINTL’s  very hot selling products, suitable for both indoor and outdoor usage, IP66 fully waterproof.


Sleek and elegant appearance design, robust and durable premium grade material, built with high quality audio components and parts.



● Build-in 70V/100V transformer and 8Ω power taps

● 1×4½”, 1×6½” or 1x8" graphite woofer speaker driver and 1" soft silk dome tweeter

● Rated output power: 30W, 40W or 50W

● IP66 all weatherproof, suitable for indoor and outdoor use

● White and black color for option


FS-6 series is built with a 70V/100V transformder and also with 8Ω input, can be used both for background music system and professional audio system applications, such like home music system, schools, stores, hotels, train stains, etc.

 Model  FS-6430  FS-5640  FS-6850
 Rated power  30W  40W  50W
 Power taps  3.75/7.5/15/30W/0/8Ω   5/10/20/40W/0/8Ω  6.25/12.5/25/50W/0/8Ω
 Line input  70V/100V/8Ω
 Output SPL  86±3dB  89±3dB  90±3dB
 Freq. response  75Hz~20KHz  57Hz~20KHz  56Hz~20KHz
 Woofer speaker  4½"x1 Graphite cone  6½"x1 Graphite cone   8"x1 Graphite cone
 Tweeter driver  1"x1 silk dome  1"x1 silk dome  1.1"x1 silk dome
 Waterproof   IP66
 Dimension (H*W*D) (mm)  232x155x148  288x195x185  360x245x235
 Net weight (Kg)  -  -  -
 Gross weight (Kg)  -  -  -
 Packing dimension (L*W*H) (mm)   -  -  -
