F-904T/F-905T Wall Mount PA Speaker with Power Taps

Product ID: F-904T/F-905T
Short Description:

Rated power: 20W / 30W
Line input: 70V/100V/8Ω
Speaker driver: 4½"+0.75" or 5" + 1"

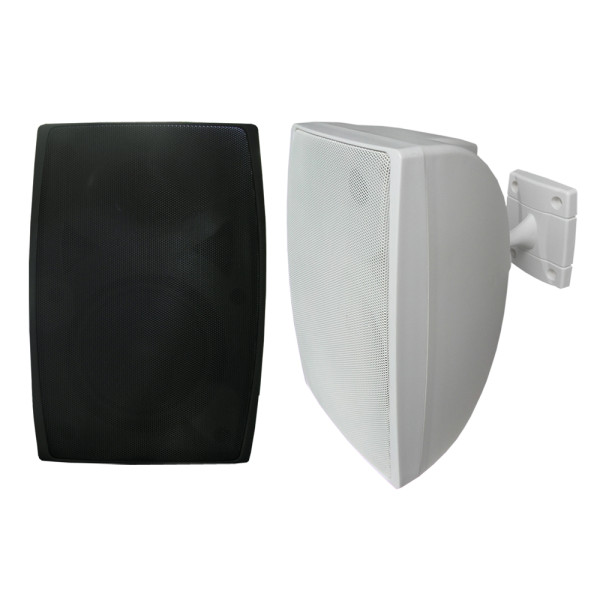

ABS on wall mount cabinet PA loudspeaker with paper woofer speaker driver and transformer, 70V/100V/8Ω line input.

Speaker driver size:
F-904T: 4½" woofer + ¾" tweeter
F-905T: 5" woofer + 1" tweeter

Power Taps:
F-904T (4½"): 2.5W/5W/10W/20W
F-905T (5"):    3.75W/7.5W/15W/30W

 Model  F-904T  F-905T
 Rated power  20W  30W
 Power taps  2.5/5/10/20W  3.75/7.5/15/30W
 Line input  70V/100V/8Ω
 Sensitivity (1m,1W)  91±3dB  100±3dB
 Frequency response  110-16KHz  100-18KHz
 Woofer speaker (LF)  4½"x1  5"x1
 Tweeter speaker (TF)  ¾"x1  1"x1
 Product dimension (mm)  227x152x136  263x180x148
 Frame material  ABS
 Grille material  Powder coated Iron mesh
 Color  White / Black
 Product net weight  1.5Kg  1.9Kg
 Gross weight  -  -
 Packing dimension (cm)  40x34x50 (8pcs)  42x40x57 (8pcs)
