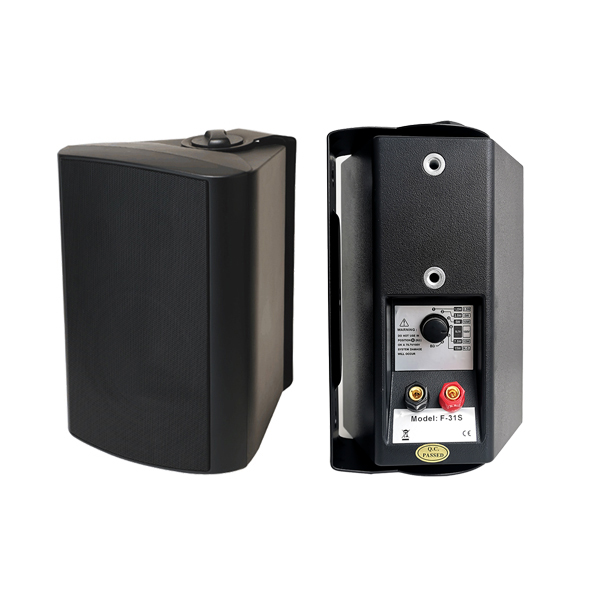

Product ID: F-31S/F-41S/F-51S/F-61S
Short Description:

Rated power: 15W/20W/30W/40W
Line input: 70V/100V/8Ω
Speaker driver: 3½"/4"/5"/6" PP + 1" tweeter

ABS on wall mount cabinet speaker with PP woofer speaker driver, 70V/100V/8Ω input and power taps.

Speaker driver size:
F-31S: 3½" PP woofer + 1" Mylar tweeter, Power taps: 2.5/5/10/15W
F-41S: 4" PP woofer + 1" PEI tweeter, Power taps: 2.5/5/10/20W
F-51S: 5" PP woofer + 1" Silk tweeter, Power taps: 3.75/7.5/15/30W
F-61S: 6" PP woofer + 1" Silk tweeter, Power taps: 5/10/20/40W

 Model  F-31S  F-41S  F-51S  F-61S
 Rated power  15W  20W  30W  40W
 Power taps  2.5/5/10/15W  2.5/5/10/20W  3.75/7.5/15/30W  5/10/20/40W
 Line input  70V/100V/8Ω
 Sensitivity (1m,1W)  88±3dB  89±3dB  89±3dB  88±3dB
 Frequency response  100-20KHz  70-20KHz
 Woofer speaker driver  3½"x1 PP  4"x1 PP  5"x1 PP  6"x1 PP
 Tweeter speaker driver  1"x1 Mylar  1"x1 PEI  1"x1 Silk  1"x1 Silk
 Product dimension (mm)  130x115x195  170x150x215  182x162x242  215x190x284
 Frame material  HIPS
 Grille material  Powder coated Iron mesh
 Color  White / Black
 Product net weight (Kg)  1.7  2.2  2.8  3.5
 Gross weight  8.5Kg/4pcs  11Kg/4pcs  12.7Kg/4pcs  17.4Kg/4pcs
 Packing dimension (cm)  29x27x27  36x34x28  40x38x31  45x43x36
