Product ID: EVAC-6006
Short Description:

Support 12 zones paging
6 inputs & mic/line selection
6 zone selection

Support 12 zones paging, totally support 32 microphones of loop connection in one system

6 inputs & mic/line selection button

6 zone selection buttons with three-colored indicator

Built-in monitor speaker

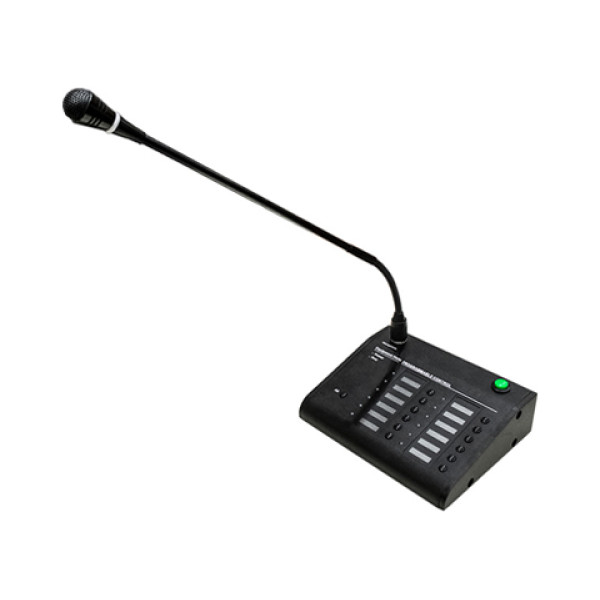

◆ Digital voice evacuation system remote paging microphone

◆ Each microphone contains 12 zone paging capacity

◆ System support 32 remote microphones by loop connection

◆ Microphone come with AC, DC, fault, Mic status and test indicators

◆ 6 inputs & mic/line selection buttons

◆ 6 zone selection button with three-colored indicators

◆ With reset/Cancel, All Call & Call button

◆ Two RJ45 ports for input and link output

◆ CAT5 or CAT6 cable communication up to 600 meters

◆ AC 230V and DC24V battery inputs

◆ Built-in monitor speaker

 Model  EVAC-6006
 Description  Voice Alarm Remote Paging Microphone
 Power Consumption  3W
 Zone Capacity  12 Zones
 System Capacity  32 Remote microphones
 Line Inputs  350mV, 10kΩ
 Mic Input  5mV, 600Ω
 Frequency Response   80Hz~16kHz
 THD  <1% at RMS,1KHz
 S/N Ratio  >70dB
 Operating Temp  -20℃ to +70℃
 Power Supply  DC24V, ±20%
 Humidity  <95% no condensation
 Dimension (mm)  256(W)×149(H)×52(D)
 Weight (Kg)  1.5
