EVAC-5500E Voice Evacuation System Expansion Unit (8 Zones, 500W)

The LYINTL EVAC-5500E is an 8-zone Voice Evacuation & Emergency Broadcast System Extension Unit designed to expand the capacity of the LYINTL EVAC-5500 voice evacuation system. Working together with the EVAC-5500 host, it provides additional speaker zones, amplifier switching capability, zone control, and audio distribution functions for medium and large-scale emergency broadcast installations.

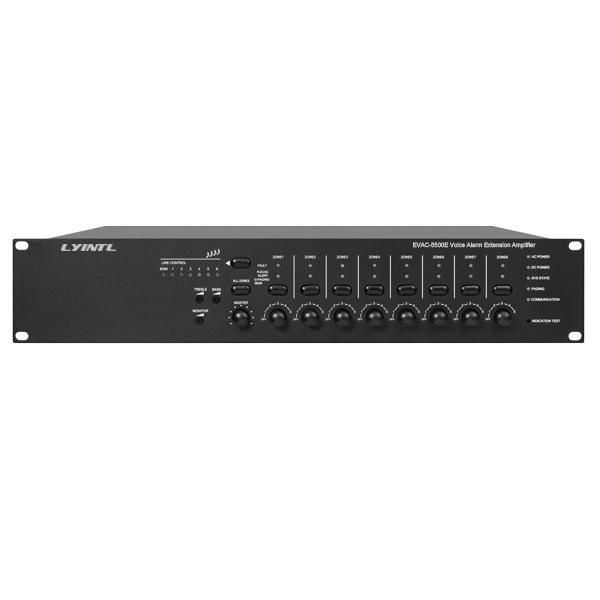

Built with a standard 2U rack-mount chassis, the EVAC-5500E features a premium black anodized aluminum alloy enclosure and a brushed front panel, delivering excellent durability and a professional appearance for equipment rack installations.

The unit supports 8 independent speaker zones, allowing operators to activate or deactivate individual zones or all zones through dedicated control buttons. Designed for reliable emergency communication, it supports main and backup amplifier switching with amplifier fault monitoring, ensuring continuous operation during critical situations.

The EVAC-5500E also provides flexible audio connectivity, including 2 balanced microphone inputs, 4 line-level audio inputs, and 1 line output for external recording or system expansion. Independent volume adjustment, master volume control, and treble/bass controls allow users to optimize audio performance for different installation environments.

When integrated with the EVAC-5500 host, the EVAC-5500E offers a scalable and dependable solution for voice evacuation, emergency broadcasting, public address paging, and background music distribution across large facilities.

Key Features

Expand the EVAC-5500 System by 8 Additional Zones

Adds eight independent loudspeaker zones to the voice evacuation system.

Independent & All-Zone Control

Supports individual zone ON/OFF control as well as one-touch all-zone operation.

Main & Backup Amplifier Switching

Supports automatic switching between main and standby amplifiers with amplifier fault detection.

Flexible Audio Inputs & Outputs

Features 2 balanced microphone inputs, 4 line inputs, and 1 line output for recording or system expansion.

Audio Tone & Volume Adjustment

Master volume control with independent treble and bass adjustment.

Premium 2U Aluminum Alloy Chassis

Professional rack-mount design with anodized aluminum construction and brushed front panel.

Applications

The EVAC-5500E is ideal for expanding voice evacuation systems in:

• Shopping Malls
• Hotels & Resorts
• Office Buildings
• Hospitals
• Schools & Universities
• Airports
• Railway Stations
• Convention & Exhibition Centers
• Government Facilities
• Industrial & Commercial Complexes

Specifications may be subject to change without prior notice.
